Hydraulic Jet Pump Artificial Lift

It is not necessary to use a drilling rig to operate the pump in a jet pump lift system because the pump is run from the bottom of the well.

The hydraulic fluid artificial system has a multiplexer pump that is located on the surface.

This pump is used to pressurize and inject hydraulic fluid into the well.

The fluid goes through the aperture, then the jet pump, and finally the nozzle.



Hydraulic Jet Pump Artificial Lift

This causes the fluid's pressure to drop as it goes through the nozzle because of the venturi effect.

This causes the liquid to be drawn from the reservoir and introduced into the pump's throat, which is where the liquid is integrated.

After that, the mixture is moved to a pump diffuser, which is a device in which the pressure is increased to bring the liquid closer to the surface.

Your partner in hydraulic lifting, Liberty Lift offers a unique oil production solution.

 Our hydraulic oil well jet pumps provide various benefits, beginning with the incorporation of cutting-edge technology into a straightforward design.



Best Hydraulic Jet Pump Artificial Lift

The surface pump, which is the most expensive component of the unit and is produced by Wanner Engineering, which is well-known in the industry, is the most expensive part of the unit.

However, in contrast to expensive ESP pumps, the surface pump sits above ground and is simple to access in the event that any time-consuming repairs are necessary.

Downtime is kept to the lowest and there is none required.

As is typically the case with conventional piston pumps, the seal less design of this pump does not include a filler or stuffing box, so these components cannot leak or fail prematurely.

Even with the suction line blocked, the pump is able to operate dry for an infinite amount of time.

Condensate, water, or hydrocarbon fluids that are readily available at the well site make up the power fluid in most cases.

Combining the working fluid with chemicals or diluents is another option for resolving issues with downhole flow and tubular erosion.



Hydraulic Jet Pump Artificial Lift Features

Both jet pumps and hydraulic piston pumps manufactured by Weather ford are compatible with a surface-mounted power fluid system.

This system has the capability to service individual wells as well as many wells from a single package, which results in a reduction in the system's overall cost.

In addition, this kit gives you the ability to swap between hydraulic piston pumps and jet pumps in your well without requiring any downtime or additional equipment purchases.

In order to get the reservoir fluid ready for use in the jet pump, this dual-pad system cleans, conditions, and compresses it.

A multiplexer pump with anywhere from 60 to 625 horsepower and either an electric motor or a multi-cylinder engine are both components of a skid.

The other type of sludge has a vessel within it, which is used for conditioning the production fluid and the exhaust power fluids, as well as separating the oil from the gas and the water.

The corrosion-resistant property is shared by both the pump and the container.



Hydraulic Artificial Lift

In the extraction of oil and gas, hydraulic jet pumps are a tried-and-true type of artificial lift that has been utilized for many years by industry professionals.

As an alternative to gas lift systems or electric submersible pumps, they are primarily employed for primary production and high-rate well unloading (ESP).

It is also a viable alternative when higher flow rates are required in wells with high concentrations of sand or other fracturing solids that can manage huge volumes of gas.

This is because it is able to handle the increased pressure that comes with higher flow rates.

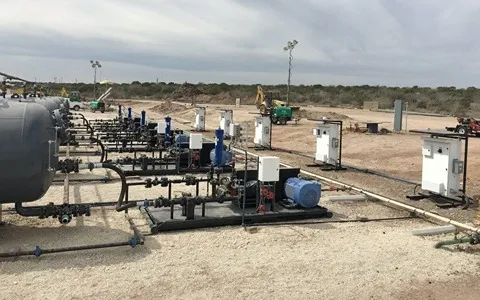

Typically, the pumping units are installed in a compact package above ground.

This package either contains an inverted casing pump with a tubing return method or a hydraulically balanced diaphragm pump that delivers 5,000 psi of power fluid pumped through the pipeline to the casing.
