The flexible type of coaxial or coax cable is widely used for internet connection and TV.
In this article, we will discuss and suggest some of these cables which are made for TV and you may want to know more about them.

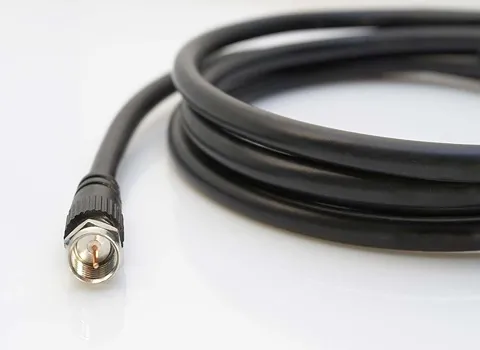

coaxial cable audio
Even if you have a television capable of displaying 4K resolution, you still need the appropriate coaxial cable in order to obtain the optimum performance.
The signal that is sent to a television from a cable line, a satellite, or an antenna is carried across a coaxial cable.
Using the incorrect type of coaxial cable can reduce the strength of your signal.
While streaming a show, if your signal isn't strong enough, you risk getting a poor-quality image as well as those annoying pauses.
Copper conductor wires are what make up a coaxial cable.
These wires are encased in layers of insulation that prevent the line from being disrupted by the radio frequencies and electromagnetic interference that are present in their surroundings.
A video signal and other data are carried to a TV by the electrical current that runs through the conductor.
This article will discuss what characteristics of a coaxial cable are essential for getting the most out of an HDTV setup in the home and will also provide a review of some of the top coaxial cables currently available on the market.
- BEST OVERALL: Mediabridge Coaxial Cable
- Ultra-Clarity Cables came in second place.
Coaxial Cable Triple-layered protection - Amazon Basics CL2-Rated Coaxial TV Antenna Cable is the BEST BUY in terms of price.
- C2G 28721 RJ11 is the High-Speed Internet Modem Cable That Works Best with Your Modem.
- The Postta Digital Coaxial Cable (75 Feet) Quad Shielded is the BEST CABLE FOR 4K TV.
- THE PHAT SATELLITE 50ft White DIRECTV Approved 3Ghz IS THE BEST CHOICE FOR A TV ANTENNA
- The GE Digital 2-Way Coaxial Cable Splitter, 2.5 GHz is our pick for the best coaxial splitter.
- The PHAT Satellite 50-foot Direct Burial RG-11 Cable is our pick for the best coaxial assembly.

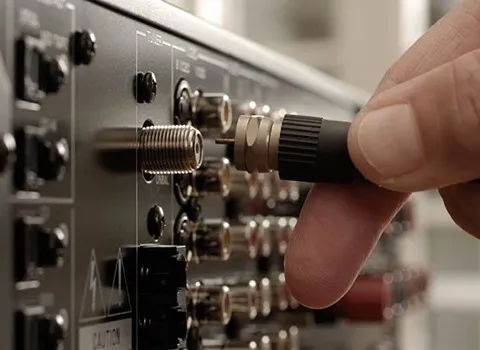

coaxial cable connector
Various kinds of coaxial cables RG59, RG6, and RG11 are the three varieties of coaxial cables that are available.
Although RG6 is the most common type of coaxial cable, RG11, and RG59, which is on the lower end of the spectrum, also have their places in certain connections.
The following is an overview of each type: The least expensive of the available coaxial cable alternatives is RG59.
The most fundamental TV antenna connections can be made using it, as well as closed-circuit TV hookups that require only a short cable length.
It does not have the insulation necessary to function as a useful coaxial cable for making connections to satellite cables or running for extended distances.
On the other hand, given that it is less thick and more easily bent, it is ideally suited for making brief connections in confined areas.

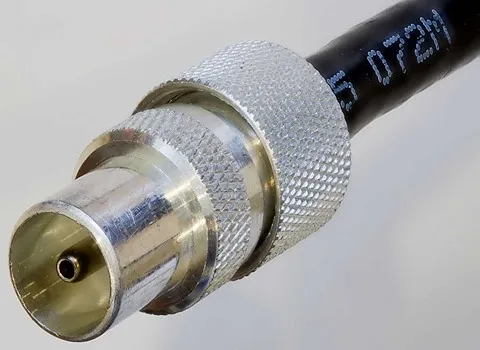

coaxial cable adapter
Types of Connectors Connectors can be broken down into two primary categories: Connecting or disconnecting televisions, test instruments, and radios using BNC (Bayonet Neill-Councelman) connectors is a straightforward process.
They are often utilized for cables that are not very long.
They are the connection that is most suited for use with RG59 cable.
Connectors of the F-type variety are the most typical.
They are utilized in the process of establishing connections for cable TV, satellite TV, and digital TV alongside RG6 and RG11 cable.
They are available in two different varieties: twist on and crimp.
Crimp-style connections produce a connection of significantly higher quality than twist-on connectors do.
Construction The following are the three fundamental components that make up coaxial cables: Conductor: The signal is sent from the source to the TV via a solid copper or copper-clad steel conductor that is positioned in the middle of the cable and serves as the conductor for the signal.
coaxial cable for tv
Power and Critical Load Ratings The CL rating of a coaxial cable specifies which electronic devices it can securely wire.
It is essential to take into consideration the CL ratings of coaxial cables, despite the fact that they do not pose the same risk of fire as the power cords of a TV.
The vast majority of coaxial cables have either a CL2 or CL3 rating.
Cables with a rating of CL2 are safe for installation inside walls and can resist power surges of up to 150 volts without melting or shorting out.
This makes them an excellent choice for electrical wiring.
CL3 is comparable to CL2, except it is able to withstand voltage spikes of up to 300 volts.
Frequency of Operation and Signal Transmission The operating frequencies of coaxial cables are purposefully chosen to be those that cause the least amount of signal loss.
The shorter the signal's wavelength is, and the higher the frequency of the signal, the greater the likelihood that it will penetrate the shields of the cable.
The frequency of operation of the vast majority of coaxial cables falls between 600 and 2,000 megahertz (MHz.)
Cables of higher grade R6 and R11, which have greater insulation, operate in the vicinity of 600 MHz, whereas cables of lesser quality R59, which have thinner insulation, operate in the vicinity of 2,000 MHz.
R6 and R11 cables have superior performance over longer distances compared to R59 cables.
Attenuation versus Length of Sound Wave The term "attenuation" refers to the weakening of a signal that takes place whenever a signal comes from a cable line or antenna and is sent along a coaxial cable.
A number of natural phenomena that are inherent to the materials that make up the coaxial cable, like resistance and dielectric loss, are responsible for attenuation.
Because a signal loses strength according to the distance it must travel, the longer a coaxial cable is, the greater the loss.
coaxial cable for internet
The attenuation caused by a 10-foot R6 coaxial wire will be lower than that caused by a 50-foot R6 coaxial cable.
Another aspect that contributes to the attenuation of a signal is its frequency.
The attenuation of a signal traveling via coaxial cable increases proportionally with the frequency at which it is sent.
Because of this, the quality of RG59, which runs at a frequency that is close to 2,000 MHz, is inferior to that of RG6, which operates at a frequency that is 600 MHz.
A coaxial cable that is 50 feet long and has an operating frequency of 1,000 MHz will have less attenuation than a coaxial cable that is 50 feet long and has an operating frequency of 1,500 MHz.
Application A TV and an external TV antenna can be connected to one another using a coaxial wire.
A high-speed internet connection via a modem is also connected to a cable line by this device.
coaxial cable extender
This enables the user to stream content from the internet (such as Netflix) onto a television screen.
It is possible to run coaxial cable through the walls of a house in order to enable cable and antenna hookups in a variety of rooms.
Coaxial cable can be run around the outside of the property to connect individual residences to the primary cable line serving the neighborhood.
Components for dividing coaxial cable A single cable line can be split in half with a coaxial cable splitter, creating two distinct lines from the original line.
A coaxial cable input is located on one side of a tiny box, and it is used to connect a coaxial cable that is running from the signal source, which could be an antenna, satellite, or cable TV line.
On the opposite side of the box is where the cable outputs are located.
These cable outputs allow the signal to be sent to several devices at once, such as a TV or modem.
