can sjoow cable be buried and unanswered pertaining questions
there are many unanswered types of questions that are buried deep in our minds, pertaining to different types of wire and cable which we neither can let go of them nor let them be there. So, in this article, we will answer some of them regarding the SJOOW and SOOW cables.
cable unanswered questions
What does SJOOW Cable stand for?
The SJOOW cable is a high-performance, portable service cord that is suitable for use both inside and outside. It is insulated with synthetic rubber and has a neoprene rubber jacket to protect it from the elements.
The cable is a junior service cord that is rated for use in applications that involve 300 volts. Applications requiring single-phase or multiphase electricity can call for a cable with two, three, or even four cores.
The sizes range from 18 American Wire Gauge, which has an ampacity of 10 amps, all the way down to 10 AWG, which is appropriate for power tools that can handle 30 amps.
You may power portable 120-volt and 240-volt single-phase power tools, appliances, small motors, and other portable tools and equipment for use both indoors and outdoors by using the SJOOW portable service cord.
Additionally, it is ideal for use in applications that require 208 volts and three phases. The tough rubber insulation that covers the portable cord is resistant to abrasion as well as dirt, oil, and water. You are able to use it outside regardless of the weather.

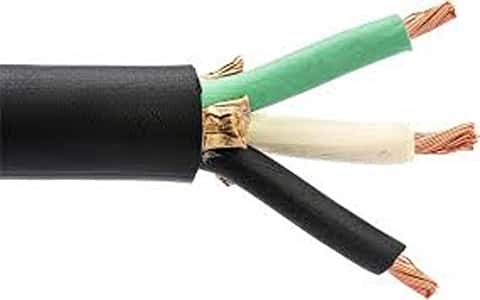

SJOOW Cable Construction
Multi-stranded conductors and rubber insulation that is both tough and flexible are used to make heavy-duty SJOOW cable, which gives the cable both its durability and its flexibility.
Conductors
The SJOOW portable cord features stranded conductors that are constructed from bare copper strands gauged at 30 AWG. You have the option of purchasing it with two, three, or four conductors.
Insulation
Insulation for individual conductors is provided by synthetic rubber, which is manufactured from ethylene propylene diene monomer (EPDM). Since EPDM is a thermoset material, there is no risk of insulation shrink-back when stripping wires made of this material. In addition, EPDM possesses exceptional resistance to water, chemicals, oil, and heat.
Jacket
The insulation is protected by a jacket made of neoprene rubber. Neoprene has a high tensile strength and is resistant to abrasion, heat, ultraviolet (UV) radiation, water, and chemicals. It also has an excellent thermal shock resistance.
What does it mean when you see the letters SJOOW?
The letters printed on the portable service cord provide information about the type of cord and the function it serves.
The initial letter, "S," indicates that this cord is designed for extremely demanding service. It has a high level of durability and may be utilized both outdoors on large building sites and indoors in workshops.
cable voltage rating
Due to the fact that a J comes after the S, this indicates that the cord can support a maximum voltage of 300 volts. It is essential to understand this, as the cord's voltage rating would be 600 volts if there was neither a J nor a V present.
Both the insulation and the jacket are produced from materials that are oil-resistant, as shown by the presence of both O letters.
If there were just one O, this would indicate that the outer jacket is the only part that is impervious to oil. A rating of OO indicates that you will continue to be protected even in the event that the outer jacket is nicked or otherwise compromised.
The last letter, "W," denotes water and weather resistance, which indicates protection from the sun's ultraviolet rays, ozone, and the effects of weathering and water infiltration.
Additional Cords for Portable Services
Every portable service cord needs to bear the appropriate designation, and you need to be very careful to select the right kind of cord for the task at hand. Here are some alternatives that are frequently used:
A severe duty service cable rated for use outdoors that has oil-resistant insulation and a jacket and operates at a voltage of 600 volts.
This cord is very similar to SJOW, however, unlike SJOW, it does not include oil-resistant insulation and instead only has oil-resistant jacketing.
This cord's outer jacket is made of a flexible thermoplastic elastomer, as stated in the SEOOW. Although the elastomer is not as durable as synthetic rubber, it remains flexible even when the temperature drops, making it simpler to work with during the colder months.
SJOOW-tinned Copper: As the name suggests, this cable possesses the same characteristics as SJOOW cable, with the exception that its conductors are made of tinned copper rather than pure copper. Copper that has been tinned is better able to withstand oxidation and corrosion in damp environments.
What is the key distinction between Sjoow wire and Soow wire?
The voltage rating for SJOOW cord is 300 volts, whereas the voltage rating for SOOW cord is 600 volts. The "J" in SJOOW stands for "Junior," which refers to the lower voltage rating of the signal. Both varieties of service cable are able to withstand abrasion, ozone, sunshine, chemicals, oil, and have been given the green light to be submerged in water.
Can you bury Soow cable?
It is not permitted to be directly buried due to the fact that it is susceptible to physical harm. For direct burial applications, UF cable is typically used. The "SOOW" cord is not approved for use in situations where it will be buried directly on the outside insulation.
Is it possible to utilize soow cable in a cable tray?
Cable Assemblies of the Type TC – Tray Cable (STOOW) STOOW cable possesses the same oil- and water-resistant properties as SOOW and SEOOW cord, and it may be utilized in applications located both inside and outside.
Does Soow have a high resistance to water?
cable quality flexibles
The SOOW cord has a general resistance against oil, solvents, water, ozone, aging, and abrasion. In addition to such qualities, it is flexible and long-lasting.
Is Soow cable resistant to the sun's rays?
The SOOW is extremely long-lasting. The cable is protected from the elements by a thermoset rubber jacket that, when subjected to direct heat, causes the jacket to become more rigid. This makes it possible for the cord to remain undisturbed by the effects of aging, abrasion, water, sunshine, and ozone. Insulation that is resistant to oil and jacketing that is oil-resistant both contribute to the cord's endurance.
What is the key distinction between Sjoow and slow?
The two varieties of cord differ from one another in terms of their jacket thickness; nevertheless, the primary distinction between them is their operating voltage. Because the jacket of the SOOW cable is more robust, it is capable of withstanding voltages of up to 600 volts.
Portable tools and equipment, portable appliances, and compact motors are all suitable applications for SJOOW cable as well as SOOW cable.
Can I use Soow cable in the great outdoors?
SOOW is approved for usage both indoors and outdoors due to its construction, which includes oil-resistant thermoset chlorinated polyethylene (CPE) jacketing and color-coded synthetic insulation made of EPDM rubber that is resistant to oil, ozone, and water.
