The sheathed wire and cable are very popular for house wiring but for what reason does this cable gain popularity, what does it mean, and how to make the right decision and choose the suitable one for specific applications are the questions that will be answered.

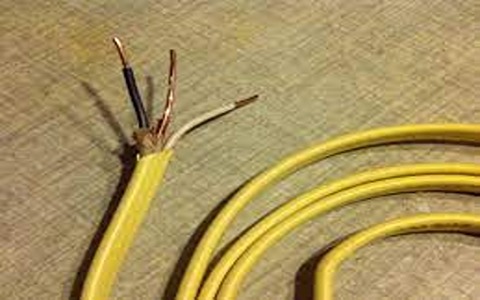

sheathed cable right
The conductors on the inside of a cable are held in place and protected by a sheath that is wrapped around the exterior of the cable. Cabling is used for a variety of purposes, including the transfer of energy and the provision of telecommunications.
Wire that is used for the transmission of electricity or electronic signals and is shielded from electromagnetic interference from other signals by an encircling web of earthed wire mesh or metal foil.
For applications involving fixed wiring, the cables are often put in conduit in the walls or on the surfaces.
Internal wiring of distribution boards and switchboards typically makes use of wires that do not have a sheathing around them. The adaptable cables are used to make connections to mobile apparatus. Either a single core or many cores are contained within sheathed cables.
How do you go about picking the appropriate materials for your insulation and sheathing?
Insulation and sheath are both made of plastic and serve the purpose of protecting the conductor inside of a cable. The sheath wraps around the outside of the cable to protect the conductors on the inside and facilitate electricity transmission. The insulation blocks the flow of electricity and keeps it from leaking out of the cable.
The selection of the material that is used for the cable's insulation and sheath can have a significant influence on the overall performance of the cable, and there are a number of important considerations to keep in mind when selecting the appropriate material for your specific application, including the following:
Do you have any specific needs pertaining to the performance of the electrical system?
How important are abrasion resistance, durability, and flexibility when it comes to the demand for mechanical performance?
Is there a possibility that the cable could come into contact with harmful chemicals or radiation?
Is the use of halogen-free materials required, and if so, does the material have to be able to stop the spread of fire, smoke, and corrosive or toxic fumes?
Does it need to have a certain level of resistance to water?
Will the application be subjected to the elements, such as sunshine or ozone?
Will the cable continue to function even when exposed to temperatures that are dangerously high, making thermal qualities such as melting temperature and thermal aging crucial?
Material categories
There are many distinct classifications of materials to choose from. Each one is unique in its characteristics, advantages, and applications.
When higher electrical performance is desired, it is frequently optimal to employ materials that are chemically pure since they are ideal for use as insulation.
Materials with the characteristics of PTFE and HFI 90, for example, have a high insulation resistance and a low dielectric loss. When it comes to sheathing, the most important elements are the surrounding environment and the requirements for fire resistance.
sheathed cable material
Fluoropolymers
Fluoropolymers are halogenated high-temperature materials that are inherently very good at preventing the spread of flames.
In addition, they do not produce a significant amount of smoke and have excellent electrical qualities. The mechanical strength and elasticity of fluoropolymers, as well as their resistance to oil, gasoline, and chemicals, are all good qualities in this material.
Polyolefins
Polyolefins are resistant to temperatures as high as 100 degrees Celsius. The chemical resistance, mechanical characteristics, and thermal properties can all be improved through the process of cross-linking.
Polyolefins are resistant to abrasion and have excellent electrical characteristics. They are also chemically and radiation resistant and tolerate harsh conditions well. It possesses superior mechanical qualities and can be utilized in environments including water.
Polyolefins with HFFR
HFFR, which stands for "halogen-free flame retardants," Polyolefins are halogen-free polymers that have a lower melting point and can be manufactured to be fire resistant using halogen-free flame retardants. In most instances, they are materials with thick walls that are utilized for jacketing. Up to 130 degrees Celsius is the maximum temperature at which some HFFR-copolymers can be employed.
Polyesters
Polyesters, like TPS 100, can generally withstand higher temperatures than polyolefins, and due to the fact that they are more durable, they can be employed in thinner applications. It is possible to flame retard it with halogens, or with flame retardants that do not include halogens.
Polyesters are distinguished by their exceptional mechanical qualities, particularly their high level of tenacity. In addition to this, they are resistant to oil and fuel, and they can tolerate minor contact with acids, bases, and water.
sheathed cable capabilities
Polyurethanes
Polyurethane is a suitable material for sheathing due to the fact that it possesses high mechanical capabilities; it is extremely durable and has resistance to abrasion.
It is possible to flame retard it using flame retardants that do not contain halogen, however it is not suitable for use as insulation (it has poor electrical properties). In addition to being resistant to fuel, acid, and base, polyurethane has great resistance to water and oil. Additionally, the material exhibits exceptional flex-life and resistance to radiation as well as ozone.
PEEK
PEEK is an extremely durable substance that is used for the construction of specialized high-performance cables. The material is very similar to fluoropolymers in many respects, with the exception that it does not include any halogen.
Processing this information is exceedingly challenging. Exceptional chemical resistance and outstanding mechanical properties are two of the special characteristics. It is also resistant to fire and produces little smoke and no toxins when burned. PEEK possesses exceptional resistance to both radiation and abrasion as well.
Rubber-like
Rubbers that are based on polyolefin or silicone, such HFR 150, MPR 100 and MPR 105, have a tendency to be extremely flexible and have good temperature ranges. Due to the fact that their insulation resistance is also fairly strong, you can use them as either a jacket or as insulation.
Because of their low rigidity and considerable pliability, their wall thicknesses must be increased. Rubber-like compounds have varied degrees of resistance to both chemicals and water.
