One key component that powers these systems is the three-phase transformer.
Often referred to as the powerhouse of electricity distribution, the three-phase transformer plays a crucial role in converting and distributing electrical energy.
In this article, we will explore the fundamentals, working principles, applications, and benefits of three-phase transformers.
Whether you are an electrical engineer or a curious reader, this article will unravel the wonders of three-phase transformers and shed light on their importance in modern power systems.

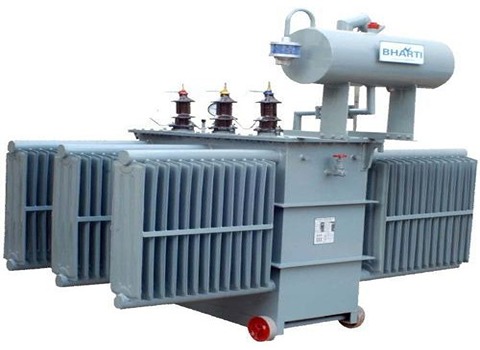

What is a Three-Phase Transformer?
A three-phase transformer is a type of electrical transformer that transfers electrical energy between three interconnected electrical circuits through electromagnetic induction.
It is an essential component in three-phase electrical systems, which are commonly used in power generation stations, distribution networks, motor control centers, and industrial equipment.
The three-phase transformer allows efficient transmission of high-voltage electricity over long distances while minimizing power losses.
Working Principles of Three-Phase Transformers
Three-phase transformers operate on the principles of electromagnetic induction, similar to single-phase transformers.
However, three-phase transformers have three separate sets of primary and secondary windings arranged in specific configurations.
There are two primary configurations used in three-phase transformers: the Delta (Δ) configuration and the Wye or Star (Y) configuration.
In the Delta configuration, the primary windings and secondary windings are connected in a triangular arrangement, forming a closed loop.
In the Wye configuration, one end of each of the primary windings is connected to a common point called the neutral, while the other ends are connected to the primary terminals.
On the secondary side, the windings are also connected in either Delta or Wye configuration.
The operation of a three-phase transformer is based on the interplay of voltages and currents within the windings.
When a three-phase AC voltage is applied to the primary windings, a rotating magnetic field is generated.
This magnetic field induces voltages in the secondary windings, which are then connected to the load.
Advantages of Three-Phase Transformers
Three-phase transformers offer numerous advantages over their single-phase counterparts, making them the preferred choice for power system applications:
Higher Power Transfer: Three-phase transformers are capable of delivering significantly higher power than single-phase transformers.
This feature is crucial for industrial applications that require large amounts of electrical energy.
Better Efficiency: Compared to single-phase transformers, three-phase transformers have lower losses due to the balanced operation of the three phases.
This results in higher overall efficiency and reduced energy wastage.
Smaller Size and Weight: Three-phase transformers are generally smaller and lighter than their equivalent single-phase transformers, making them more compact and easier to install.
Cost-Effectiveness: Due to their higher power transfer and efficiency, three-phase transformers offer a cost-effective solution for power distribution systems.
They allow for reduced infrastructure costs while delivering the required power demands.
Applications of Three-Phase Transformers
Three-phase transformers have a wide range of applications across various industries. Some of the key applications include:
Power Generation: Three-phase transformers are used in power generation stations to step up voltages for efficient transmission across long distances.
They are also used in step-down configuration to distribute electricity to local grids and consumers.
Industrial Applications: Three-phase transformers play a critical role in powering industrial machinery and equipment.
They provide the necessary voltages for motor control centers, variable frequency drives, and other industrial automation systems.
Distribution Networks: Three-phase transformers are vital components of electrical distribution networks.
They are used to step-down voltages for safe and efficient delivery to commercial and residential consumers.
Renewable Energy Systems: With the increasing adoption of renewable energy sources such as solar and wind, three-phase transformers are crucial for connecting these sources to the grid.
They enable the efficient transfer of renewable energy to homes and businesses.
