Introducing the types of steel rebar for concrete construction +The purchase price

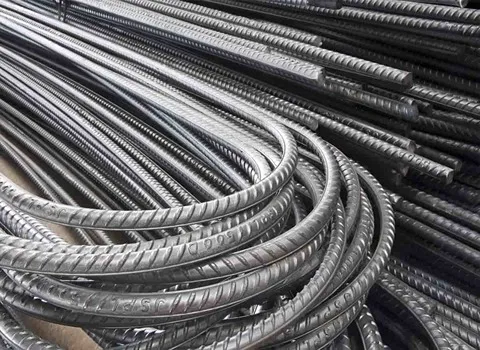

In many buildings and structures, steel rebars are employed. Rebar, for instance, is utilized in concrete in the shape of a mesh to offer strength. In reinforced concrete and masonry constructions, rebar, also known as reinforcement steel and reinforcing steel, is a steel bar or mesh of steel wires that is used to strengthen and keep the concrete in tension. Other names for rebar are reinforcing steel and reinforcing steel. The surface of the rebar is frequently patterned in order to improve the quality of the bond that it has with the concrete. steel rebar building In order to compensate for the fact that concrete is strong when it is compressed, but it is relatively weak when it is stretched, the use of rebar is required. Concrete's capacity to carry tensile loads and, as a result, the structure's overall strength can be increased when reinforcement bars are cast into the material. Various applications of rebar include the following: Primary reinforcement is a term that refers to the use of reinforcement that is used to create resistance to support design loads. Secondary reinforcement is used for things like durability and aesthetics by providing localized resistance to limit cracking and temperature-induced stresses. This helps keep the material from breaking down too quickly. Offer resistance to concentrated loads, so distributing the impact of such loads across a larger region. Holding other steel bars in the appropriate place will allow them to better accommodate the loads they are carrying. Tie bars made of external steel are used to constrain and reinforce masonry structures, and they are sometimes employed as a method of building conservation. Reinforced masonry is masonry that has voids in it to accommodate rebar so that it can carry tensile loads. Some masonry blocks and bricks have these voids. Grout is used to keep the rebar in place where it belongs. BS 4449: 2005 is the document that establishes the standards for the specification of rebar. Steel used for the purpose of reinforcing concrete. Reinforcing steel that can be welded. Product available in bar, coil, and decoiled form. When producing rebar, mild or high yield steel of grade 250 or 250 N/mm2 characteristic tensile strength is typically utilized in the manufacturing process. Both of these grades include around 99% iron as their primary component, along with smaller amounts of manganese, carbon, phosphorus, and sulfur. The percentage of carbon in steel determines both the quality and grade of the steel. steel rebar structure Carbon can be found in mild cold-worked steel at approximately 0.25%, while high yield hot-rolled steel includes approximately 0.40% carbon. Bars can be made in a variety of forms, including the following:

  • Round.
  • Square-twisted.
  • Ribbed.
  • elongated, contorted, and ribbed in appearance.

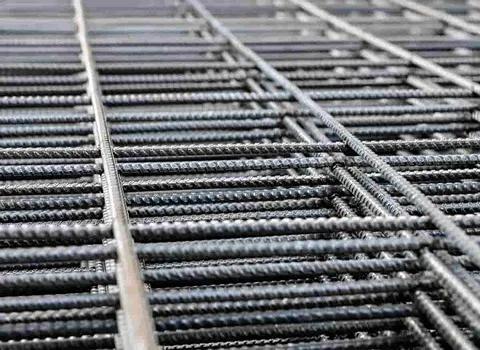

Having both ribs and twists. Following the guidelines of BS 4483, which is titled "Steel fabric for the reinforcing of concrete," several forms of steel reinforcement mesh or fabric can be manufactured. Specification. The typical dimensions of a sheet are 4.8 meters in length and 2.4 meters in width. In order for it to be able to resist regular handling, it is produced by interweaving the wires or electronically welding them together. It can be manufactured in a variety of various methods, depending on the intended use: Square mesh has a mesh size of 200 millimeters by 200 millimeters and a weight range of 1.54-6.16 kilograms per square meter. Typically employed for the construction of floor slabs. The weight range for rectangular mesh is 3.05-10.9 kg/square meter, and the mesh size is 200 mm x 100 mm. Typically employed for the construction of floor slabs Long mesh has a mesh size of 100 millimeters by 400 millimeters and a weight range of 2.61-6.72 kilograms per square meter. Construction of roads and pavements is its typical application. The wrapping mesh has a mesh size of 100 millimeters by 100 millimeters. Typically utilized in slabs that are suspended or supported by the earth. steel rebar concrete

steel rebar building

steel rebar is used in many parts of the buildings to bring strength to many parts of the construction. When you were trying to plan and buy materials for a concrete or cement construction project, you may have heard the term "rebar" thrown around. This is because rebar is commonly used in these types of projects. However, what exactly is rebar? Specifically, what contribution does it offer to your overall project that makes it so essential? The usage of concrete often calls for the employment of rebar, which is a type of steel bar. You can create reinforced concrete by adding these reinforcing steel bars to the concrete mixture. Using rebar in your construction projects, whether they involve floor slabs, walls, or posts, helps prevent cracks from spreading throughout the structure and ultimately causing it to fail. Even though concrete always fractures, rebar and other reinforcing materials can assist regulate where the cracks appear and how extensive they are. Additionally, it offers the project increased structural strength. What makes rebar such a vital component of my project? Concrete reinforced with rebar is three to five times more resistant to cracking. It accomplishes this by employing a reinforcing bar that is resistant to corrosion in order to deliver tensile strength. If you want to add structure to your concrete, using rebar as your support system is going to be considerably more effective than using steel wires, reinforcing fiberglass, or any of the other numerous solutions that are now on the market. Why? Because it lends itself to the overall structural integrity of the building. There are several distinct kinds of rebar. On the market, there is a diverse selection of rebar kinds, including: The use of rebar made of carbon steel is essential to the construction industry. The vast majority of concrete pours call for its utilization. Why? It is more affordable than other options while yet delivering excellent strength. The more conventional steel rebar can be replaced with GFRP, which stands for glass fiber reinforced polymer. The rebar, which serves as reinforcement, is manufactured in the form of sticks using fiberglass. Tensile strength is another measure of how well it compares. In order to prevent corrosion, galvanized rebars are frequently utilized in construction projects. Zinc is electroplated onto the rebar in a number of distinct ways. Electroplating, hot plating, and cold plating are all examples of these processes. The zinc acts as a barrier that prevents any potential damage to the steel. Because zinc's galvanizing properties make it unsuitable for usage in corrosive conditions, stainless steel rebars are utilized in certain settings. It typically comes with a higher price tag than galvanized rebar does. Because of this, it is only employed in the most pressing of circumstances. Epoxy-coated rebar is a cutting-edge and cost-effective alternative for use in corrosive situations. Epoxy has been applied to the surface of the rebar to prevent it from corroding. However, in locations with a moving subgrade, fissures, or mechanical motion that could destroy the protective coating and allow corrosive elements access to the steel, it may not be the best bet. Simply said, the rebars sold on European markets are measured using a different system from the one used in the United States. They continue to serve as a reliable reinforcement for the structural concrete you use. There is a wide variety of bar sizes and grades of steel available to choose from in order to get the desired level of strength. Because of this, selecting the appropriate solution for your project should not be too difficult for you.

steel rebar structure

Due to the varying yield strengths required for various parts, the structure of steel rebars used in construction varies. Because concrete has a high compressive strength, huge loads can be applied to it without breaking or wearing down the material. Steel has a unique kind of strength. It can withstand strong lateral stresses that would tear apart other materials because of its great tensile strength. Reinforced concrete, a highly stable building material that combines the finest qualities of both materials, is created by incorporating steel bars into concrete. The development of reinforced concrete revolutionized the construction business in the 19th century and enabled for the construction of the first skyscrapers in New York, including the Flatiron building, which is still standing today. Skyscrapers would be susceptible to tensile stresses brought on by earthquakes and strong winds if they were constructed entirely of concrete. What is the purpose of reinforced concrete? Large-scale construction projects including bridges, dams, piers, tall skyscrapers, and stadiums all require reinforced concrete. It is most frequently utilized for the footings and foundations of smaller, every-day homes in domestic construction. It can bear the weight of a house being built on it as well as the forces generated by the weight of the house thanks to its compressive and tensile strength. The following justifies the widespread use of reinforced concrete:

  • Reinforced concrete is extremely weather- and fire-resistant.
  • Reinforced concrete may be shaped into practically any shape needed for building, making it adaptable.
  • Reinforced concrete requires extremely little upkeep.
  • Reinforced concrete is the material of choice for dams, piers, and footings because it is weather-treated and resistant to moist conditions.
  • Reinforced concrete structures are more affordable than comparable steel ones.
  • Less trained labor is needed to create a large structure when reinforced concrete is used.

When employing reinforced concrete, there are relatively few potential drawbacks, and every effort is made to minimize them. Here are a handful that could be of interest as the majority only relate to the construction of large structures:

  • When utilizing reinforced concrete, it is important to carefully evaluate the relatively low ratio of tensile strength to compressive strength.
  • Compared to steel columns, reinforced concrete columns require more building space to erect.
  • Concrete shrinkage can result in fissures that are not structural issues but are unsightly.
  • Weather treatment is required to prevent the concrete from absorbing excessive amounts of water.

Comparing reinforced concrete to other materials, it is obvious that it has a benefit. Every professional concrete provider has a lot of knowledge and experience dealing with this composite material due to its low cost, ease of use, and versatility. Concrete is a good material to use for building a structure that must withstand the test of time, and reinforced concrete is the only option.

steel rebar concrete

Rebar is a steel bar or grid of steel wires used during reinforced concrete and masonry constructions to strengthen and maintain the concrete in tension. It is also referred to as reinforcement steel and reinforcement bars. The surface of the rebar is frequently textured to improve the quality of the bond with the concrete. Carbon steel rebar is the most prevalent variety, often consisting of hot-rolled round bars with deformation patterns embossed into its surface. Because steel and concrete have similar coefficients of thermal expansion, a steel-reinforced concrete structural member will experience low differential stress when the temperature varies. Other common forms of rebar are stainless steel and composite bars made of glass fiber, carbon fiber, or basalt fiber. Carbon steel reinforcing bars can also be coated in an epoxy resin designed to resist corrosion, which is especially important when used in saltwater conditions. Bamboo has been demonstrated to be a suitable alternative to steel reinforcement in concrete construction. These alternative varieties are typically more expensive or have lower mechanical qualities, and are thus more commonly utilized in specialist construction where their physical properties meet a specific performance criterion that carbon steel does not. Concrete has a high compressive strength but a low tensile strength. Rebar greatly boosts the structure's tensile strength. The surface of rebar is characterized by a continuous series of ribs, lugs, or indentations that promote a stronger bond with the concrete and limit the possibility of slippage. Carbon steel rebar is the most prevalent variety, often consisting of hot-rolled round bars with deformation patterns embossed into its surface. Because steel and concrete have similar coefficients of thermal expansion, a steel-reinforced concrete structural member will experience low differential stress when the temperature varies. Other common forms of rebar are stainless steel and composite bars made of glass fiber, carbon fiber, or basalt fiber. Carbon steel reinforcing bars can also be coated in an epoxy resin designed to resist corrosion, which is especially important when used in saltwater conditions. Bamboo has been demonstrated to be a suitable alternative to steel reinforcement in concrete construction.
