Specifications of electrical wiring cable+The purchase price
The electrical wire and cable either can be seen in the air or buried deep in the ground. However, there are many questions in costumers mind pertaining to how the cables are buried or what types of cables are suitable for this application.

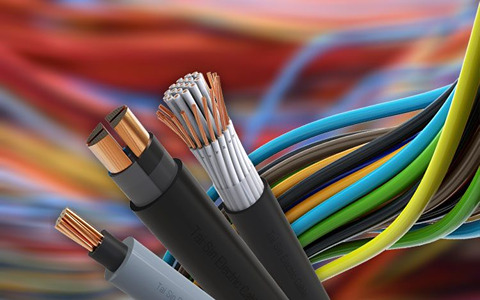

electrical wiring cable
It is possible that you intend to install electrical wiring outside in order to enable the operation of various machines, such as pumps and lighting.
You have the option of running your wiring either above the ground or in a trench below the earth, depending on the reason.
If you decide to dig a trench, you will need to research the different kinds of wiring and conduits that are appropriate for the job as well as the depth to which they should be buried.
The digging of underground tunnels, chambers, corridors, and trenches can put workers in harm's path. Electrical contractors can better protect their own safety by ensuring they are familiar with the varieties of wire and cable that are appropriate for use in underground construction.
You should examine the local and municipal laws and regulations on cable burial before getting too involved in the project, and you should also contact the local utilities so that they may designate the locations of their subterranean utilities on your land.
Only then should you get too involved. You should also submit an application for a construction permit and electrical permission before beginning any of the work, as these permits might be necessary for your town.
Which would it be, Wire or Cable?
Wires and cables are both viable options for use in underground construction and can be used interchangeably. Both copper and aluminum are viable options for the construction of an underground wire.
Copper wire can be buried naked or it can have a protective jacket or insulation around it. Either way, it is safe. A cable is made up of multiple conductors that are encased together as one unit.
One or more conductors that have a high conductivity and are made of materials such as copper or aluminum are used in the construction of an underground cable. Copper is capable of withstanding high voltage. The central part of the wire will consist of this.
Insulation forms a layer that wraps around the heart of the device and helps to prevent air leaks while also providing a high level of protection. Last but not least, there is a sheath or jacket that serves as an additional layer of protection for the cable and keeps the elements out. On the other hand, if the insulation is sufficiently dense and protective, then a jacket might not always be required.
electrical wiring project
Direct Burial
It is common practice to bury wire and cable directly in the earth when working on underground projects.
Wires and cables intended for direct burial are manufactured with the explicit purpose of being buried underground in constructing trenches.
This is due to the fact that they are able to survive tough weather conditions in areas that are either wet or dry.
Because the insulation on the wire shields it from the weather and any moisture that may be present in the earth, it can be buried directly into the ground without first going through a conduit. The wire is protected from the dirt by a mechanical barrier that is provided by the conduit.
USE, which stands for "Underground Service Entrance," and Tracer Wire are the two varieties of direct burial wire that are most frequently discussed. The voltage rating of both of these types of wire is typically less than or equal to 600V.
Which Is It: Stranded or Solid?
When it comes to selecting the appropriate wire for a particular job, an electrical contractor has a variety of options available to them.
These options include using a Tracer wire or a USE cable. The first and most essential consideration is whether the conductor should be made of solid copper or aluminum or stranded copper and aluminum.
A solid is a material that only has one conductor in it. However, despite its tremendous strength, it has a reduced degree of flexibility.
Stranded wire, on the other hand, is comprised of a bundle of many wires rather than a single solid wire. Because it is simpler to bend than solid wire, stranded wire is an excellent choice for installations that require flexibility.
electrical wiring installation
What Are the Various Kinds of Cables Used for Direct-Burial Installations?
There are many variations of direct burial cables, such as USE/USE-2, UF-B, Copper Tracer, and Aluminum URD direct-burial cables. Direct burial cables come in a variety of colors. These are some of the most popular types of electrical wire that can be buried underground, in case you were wondering what kinds of electrical wires can be buried.
USE/USE-2 Cables:
The abbreviation USE refers to the subterranean service entrance. They are designed for use primarily in subterranean power supply, more specifically from transformers to residential homes.
The conductor of these cables is constructed of annealed soft bare copper, while the insulation is composed of XLPE, which is a sturdy material that can survive hard conditions.
UF-B Cables:
An "underground feeder" is what a "UF" stands for in abbreviated form. It is versatile enough to be utilized both inside and outside the house. It is possible for this cable to link the residence to an external power hub that is located outside when it is utilized as a direct burial cable.
The conductor of UF-B cables is made of stranded bare copper, and the insulation is made of PVC, which is resistant to moisture, grease, and corrosion. Additionally, the cables are protected from the sun in an efficient manner.
Tracer Cables Made of Copper:
Underground tracer cables are a form of tracer wire that are utilized for applications that need direct burial. During the installation process, tracing cables consist of a single conductor wire that is installed alongside pipes.
The insulations are made of high molecular weight polyethylene (HMWPE), which offers superior resistance to abrasion, crush, chemical, oil, and moisture. The insulation on the copper-coated wire provides an exceptional level of resistance to abrasion and crushing, as well as to chemicals, oil, and moisture.
electrical wire power
Aluminum URD Cables:
The acronym URD stands for "underground residential distribution," which, to be perfectly honest, says it all. The cables have conductors made of compressed aluminum from the 1350-H19 series, and their insulation is made of XLPE, which has been demonstrated to be the superior material for use underground.
When there is a need for secondary power distribution circuits, these cables are the ones that get put to use in direct burial electrical power distribution. They are also available in a number of different versions.
What Kinds of Restrictions Are There for Cables That Are Buried Directly?
A cable that is buried directly underground must comply with a number of different standards. However, the majority of it varies from one place to another. However, there is a standard code known as the NEC that contains standards for electrical cables that are buried.
The depth criteria for buried electrical cable must be satisfied in order to stay in compliance with the regulations of this code. Direct burial of UF cables is possible without the use of conduit as long as there is a minimum of 24 inches of earth cover.
In residential properties, the minimum cover can be lowered to 18 inches if the wire is installed in non-metallic raceways that have been pre-approved.
Cables that transmit voltages lower than 30 volts are required to be buried a minimum of 6 inches deep.
- Underground Direct Cable Burying
Underground feeder cable, also known as UF cable, is a type of cable that has been produced and built specifically for use in buried applications. This wire needs to be buried at a depth of thirty-six centimeters (24 inches).
If the cable is buried to this depth, there is less of a chance that it may be severed or displaced if standard digging is performed. On the other hand, several municipalities, states, and provinces mandate that local utilities be notified so that they can mark the locations on a property where their subterranean utilities are located. This is done to prevent accidents.
When shopping for UF cable, you need to take extra precautions to distinguish it from regular NM (non-metallic or Romex) cable. UF cable is more expensive than NM cable. In most cases, the sheathing of UF cable contains printed information that identifies it as being UF cable.
- Installing UF Cable at an Above-Ground Location
Even though UF cable is intended to be buried, it can also be used above ground in some applications. Throughout instance, if you have a run of cable that is partially buried and partially above the ground, and you would rather not splice your burial cable to a piece of wire that is above ground, you can use UF cable for the entirety of the cable run rather than having to do so.
Be mindful, however, that any UF cable used in above-ground applications needs to be routed through conduit, where it is more vulnerable to being destroyed.
- Electrical Wire Protected by a PVC Conduit Enclosure
The National Electric Code (NEC) stipulates that electric wire must be buried to a depth of 18 inches when it is contained within rigid, non-metallic conduits like PVC.
A cable that is buried at this depth and is contained within any conduit, including PVC, is not at risk of having its connection cut or being disrupted by standard digging. It is important to bear in mind, however, that construction equipment such as trench diggers and backhoes do not offer any protection to cables or conduits from being dug into.
- Electric Wire Encased Within a Stiff Metal Conduit
Because rigid metal conduit is so durable, you can bury electrical wire in this conduit at a lesser depth than you might with other types of conduit. The NEC suggests that you can bury it at a depth of no more than 15 centimeters (6 inches).
- An electrical conductor that is sheathed in a flexible metal conduit
If you are going to utilize flexible metal conduit, you need to be sure that it is watertight.
