When operating sludge pumps, it is important to consider the pump's suction capacity and the power that it can provide.
electric pump mekanism
Because certain pumps, such as electric diaphragm pumps, are not meant for heavy-duty use, and excessive power usage will cause the internal diaphragm to rupture and the pump to fail. The positive displacement pumps that are used in chemical and industrial applications have been revolutionized by the introduction of the electric diaphragm pump. Simply described, it is an air-operated diaphragm pump that is powered by an electric motor. In the past few years, the electric diaphragm pump, which is also widely referred to as an EODD, has significantly altered the landscape of the diaphragm pump industry. An air-operated diaphragm pump that also contains an electric motor provides the user with increased control over the pump, the opportunity to achieve minimal pulsation without the utilization of pulsation dampeners, and a reduction in energy consumption. For most of their history, compressed air has been the power source of choice for AODD pumps. Compressors consume a significant amount of energy, which is a drawback of using air, and as a result, you have very little control over the flow rates. In the realm of positive displacement pumps, diaphragm pumps are a common option, and the electric diaphragm pump merely expands upon this concept. The EODD pumps consist of:
- Can be made to stop working under pressure, protecting the pump from any harm.
- You have the option of choosing ports measuring 1", 2", or 3", giving you a variety of flow rates from 151 liters per minute all the way up to 830 liters per minute.
- Come in a wide range of configurations and materials, such as polypropylene, PTFE, and PVDF, as well as stainless steel, aluminum, and ductile iron.
- It does not require priming before use and may be ATEX-certified for use in potentially explosive environments.
Similar to conventional air-operated diaphragm pumps, but with the additional advantages of the following:
- Having an option for a variable speed drive, which allows for more precise control and is easier to handle in batching and dosing applications.
- A reduction in pulsation can be achieved without the use of additional pulsation dampeners.
- Are gentler on delicate materials.
- Are more transportable
- Being quieter
- Does not require the application of icing
The addition of a motor is the primary and most noticeable difference between the two.
electric pump for car
Because of this simple adjustment, you will be able to save your operating costs by as much as 80 percent by switching to an electric drive that is more efficient. We are aware that there may be a large number of persons engaged in the decision-making process when introducing new fluid handling solutions or replacing those that are already in place. This may include the individuals who are responsible for paying the bills, so let's put this into perspective. There is no getting around the reality that the electronically powered diaphragm pump has a substantially higher initial cost; however, it is abundantly clear that these pumps are a significantly superior long-term investment in terms of both energy efficiency and cost savings. It is crucial to note that the electronic diaphragm pump does not completely eliminate the need for air because a small amount is required to charge the pump. If you do not have access to air on-site, you can get around this requirement by using an auxiliary compressor. When it comes to double diaphragm pumping, the introduction of an all-electric diaphragm pump is shaking things up. It is a positive displacement pump that can pump municipal sludge, slurries, pastes, or anything else that an air operated diaphragm pump can pump, but it does so without the inconvenience of the typical drawbacks associated with having air. Customers are moving away from using air for a variety of reasons, including cost, efficiency, functionality, safety, and lower energy usage. The EODD (electrically operated double diaphragm) pump can offer the lowest operating costs in its class—and superior durability—if it is constructed of nodular ductile iron and has an efficient motor and pump design. Customers are moving away from using air for a variety of reasons, including cost, efficiency, functionality, safety, and lower energy usage. When compared to any other pump, this can represent an increase in volumetric efficiency of up to 95 percent on average in the majority of circumstances. You will no longer require the use of electricity to make a pump circulate air. Because of this change, a whole other cost center has been eliminated, and now the only aspect of mechanical fluid dynamics that must be addressed is air. The combination of a high efficiency electro-mechanical motor and a modest stroke rate helps to keep the cost of wear parts and energy expenses to a minimal.
electric pump water
In contrast to progressive cavity pumps, gear pumps, rotary lobe pumps, and peristaltic type pumps, the mechanical simplicity of peristaltic type pumps makes any required maintenance a breeze. A design that provides a sturdy construction with integral metal core ball check valves and fabric-reinforced diaphragms that enables a smooth, mechanically controlled linear drive would be the one that would prove to be the most attractive. Large ports with a diaphragm that is located on one side of the fluid column provide passive pumping in addition to improved fluid velocity and more area for the fluid, making it less likely to become plugged. Other pumps need extremely precise tolerances in order to function properly, which automatically makes them more prone to plugging because of their design. If it is compressible and has the ability to flow freely, it can typically be pumped using an EODD pump, even to a range of around 40 percent solids, provided that it has the ability to flow freely. Large valve clearances are another factor that contributes to this equation's success. Real process control is attained through the utilization of an optional variable frequency drive, a technological advancement that is not available in air-operated diaphragm pumps. There is not an air valve that can become stuck or malfunction due to the cold or heat. It is possible to decrease flow pulsations in response to varied or demanding system conditions by installing suction stabilizers and discharge dampeners as optional additions. This type of pump would also be a game changer in double diaphragm pumping if there was some form of flow control included in it! The air-operated double diaphragm pump is unable to perform the same task as the extremely versatile EODD pump, which may function in duplex mode with two pumps running at the same time. Because of the way an EODD pump operates, which is in a design that is 90 degrees out of phase, you are able to utilize two pumps in tandem at the same time instead of only using them in the lead/lag pattern that is traditionally used. As a result, you will only require one motor, one gearbox, one baseplate, and one manifold pipe system. This results in additional savings in terms of the amount of material, time, money, and even weight as compared to the usage of two independent pump systems.
Sludge Pump Suction Capacity
Specifically developed and manufactured to meet the ever-increasing demand of municipalities and contractors for the use of sludge pumps with heavy-duty capacities in the cleaning of clogged sewage lines, the emptying of septic tanks, and the disposal of accumulated sludge from manholes and mobile toilet units by suction. This pump has been designed and manufactured to satisfy this demand. The Sludge Suction Pump is offered in a wide range of capacities and models, including those that are designed for permanent installation, those that can be supported on a trolley, and those that can be mounted directly on the chassis of the mobile tanker into which the sludge or sewage must be sucked. The second possibility involves modifying the engine that is powering the tanker's movement so that it can also power the pump. A four-way valve is a device that is not required but is available as an option. If it were used, it would make suction considerably smoother, forced disposal of the sludge considerably quicker, and both of these processes would be possible through the tank's single port. Nearly all discerning municipalities, hotels, hostels, clubs, multi-story complexes, colonizers, and all those who have septic tanks are quickly opting to have this pumping facility installed at their premises in order to remain well prepared to guard themselves against any challenge posed by a sudden emergency arising from their respective systems. This is done in order to protect themselves against any threat posed by a sudden emergency arising from their respective systems. When it comes to the proper installation and functioning of the pump, one of the most important aspects to take into consideration is the state and condition of the pump suction. If the liquid that has to be pushed is unable to pass through the impeller eye, then the pump will not be able to deliver the performance that is anticipated of it. Therefore, one of the most important things is to have an accurate grasp of the condition and condition of the pump's suction. Cavitation, one of the most significant issues that can arise in pump suction, has been the subject of a significant amount of research and writing, and its impacts on a variety of pumps have been discussed. They have not been personally affected by the issue, but because of the severity of its consequences, it is vital to investigate its specifics in great depth.

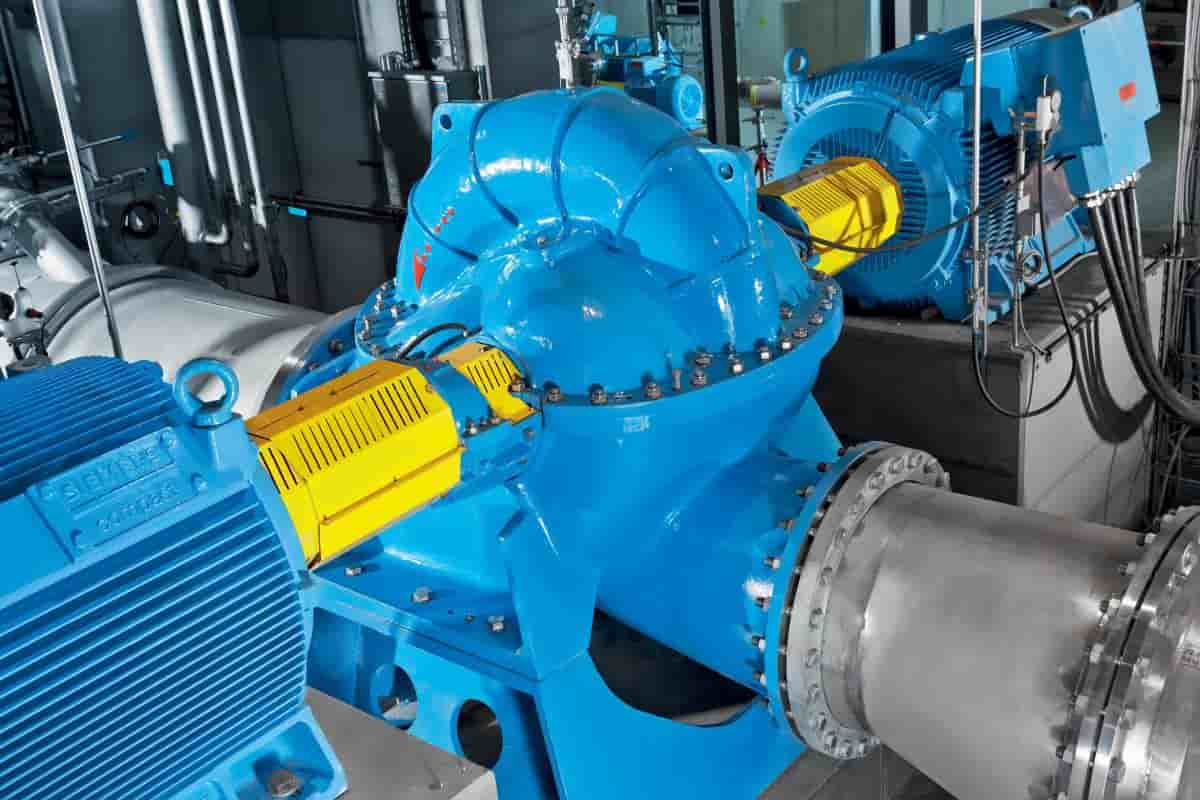

electric pump station
Cavitation and vapor pressure have a very unique relationship to one another. The pressure at which a liquid will evaporate is the same as the vapor pressure of the liquid. For instance, water will begin to evaporate when the temperature is raised to 212 degrees Fahrenheit and the pressure is lowered to less than 14. 7 pounds per square inch. This concept is also known as "boiling" in common parlance. If water is subjected to a vacuum pressure that is equivalent to 18 inches of mercury, one can say that the water will boil at a temperature of 100 degrees Fahrenheit. The warning signs and symptoms of cavitation are something that is fairly common knowledge for anyone who works with pumps. This occurrence is always accompanied by a unique rattling sound, and there is also a high level of vibrations. A thorough examination of the impeller following the occurrence of this phenomenon will reveal the presence of pitting holes on the impeller. As a result of this phenomenon, the number of heads that must be supplied by the pump will always be lower than it was before the occurrence of this phenomenon. In order to completely tackle this problem, it is essential to have a grasp of what cavitation actually is as well as the elements that contribute to the formation of cavitation in centrifugal pumps.
electric pump diagram
In general, the phenomenon of cavitation is a two-part process that is created by variations in the pressure of the liquid that enters the pump. This shift in pressure is what causes cavitation to occur (propeller part). The pressure of the liquid is guaranteed to change whenever it passes through the suction nozzle of the pump and progresses along it. These pressure shifts are depicted in the picture that can be found below. A truly all-electric double diaphragm pump with a superior design will provide the very best return on investment that checks all of the boxes when it comes to pump selection and lasts two to three times longer with better parts wear and less maintenance than air-operated double diaphragm pumps. In addition, this type of pump provides the very best return on investment and checks all of the boxes when it comes to pump selection.
