In the realm of power distribution, one of the unsung heroes is the pole-mounted transformer.
These transformers play a pivotal role in ensuring a steady and reliable supply of electricity to our homes, businesses, and communities.
Despite their importance, pole-mounted transformers often go unnoticed, blending seamlessly into the urban landscape.
In this article, we will delve into the world of pole-mounted transformers, exploring their functions, components, installation process, maintenance, and environmental impact.
Understanding Pole-Mounted Transformers: What Are They and How Do They Work?

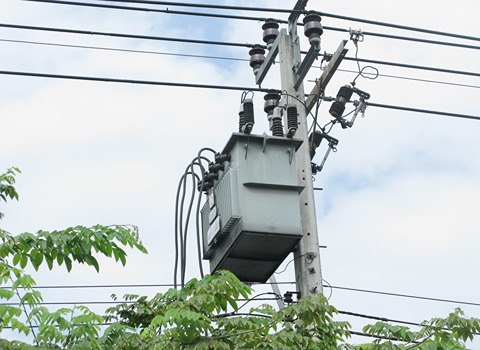

Pole-mounted transformers, also known as distribution transformers, are key components of the electricity distribution network.
They are responsible for stepping down the voltage of electricity from high voltage transmission lines to a lower voltage suitable for use by homes, businesses, and other end-users.
By reducing the voltage, pole-mounted transformers ensure that electricity can be safely and efficiently delivered to consumers.
These transformers work on the principle of electromagnetic induction.
When high voltage electricity enters the primary winding of the transformer, it creates a magnetic field that induces a lower voltage in the secondary winding.
The transformation ratio between the primary and secondary windings determines the output voltage of the transformer.
Common voltage levels for pole-mounted transformers include 240V, 480V, and 120/240V.
Components of a Pole-Mounted Transformer: The Building Blocks of Power Distribution
A typical pole-mounted transformer consists of several key components that work together to ensure smooth and efficient operation.
The main components of a pole-mounted transformer include:
Core and Windings: The core of the transformer is made of laminated steel sheets that reduce energy losses due to eddy currents.
The primary and secondary windings are wrapped around the core and are insulated to prevent electrical arcing.
Bushings: Bushings are insulating devices that allow the primary and secondary conductors to connect to the transformer.
They help to maintain the electrical isolation between the windings and the outside environment.
Tap Changer: Some pole-mounted transformers are equipped with tap changers that allow the voltage ratio to be adjusted.
This feature is useful for regulating voltage levels and compensating for fluctuations in load.
Radiator and Cooling Fans: Pole-mounted transformers generate heat during operation, which needs to be dissipated to prevent overheating.
Radiators and cooling fans help to regulate the temperature of the transformer and ensure efficient operation.
Buchholz Relay: The Buchholz relay is a safety device installed in some pole-mounted transformers to detect internal faults such as insulation failure or overheating.
When a fault is detected, the Buchholz relay triggers an alarm and initiates a shutdown to prevent further damage.
