Mud gas separators are designed to ensure the efficient separation of mud and gas from the well during drilling.

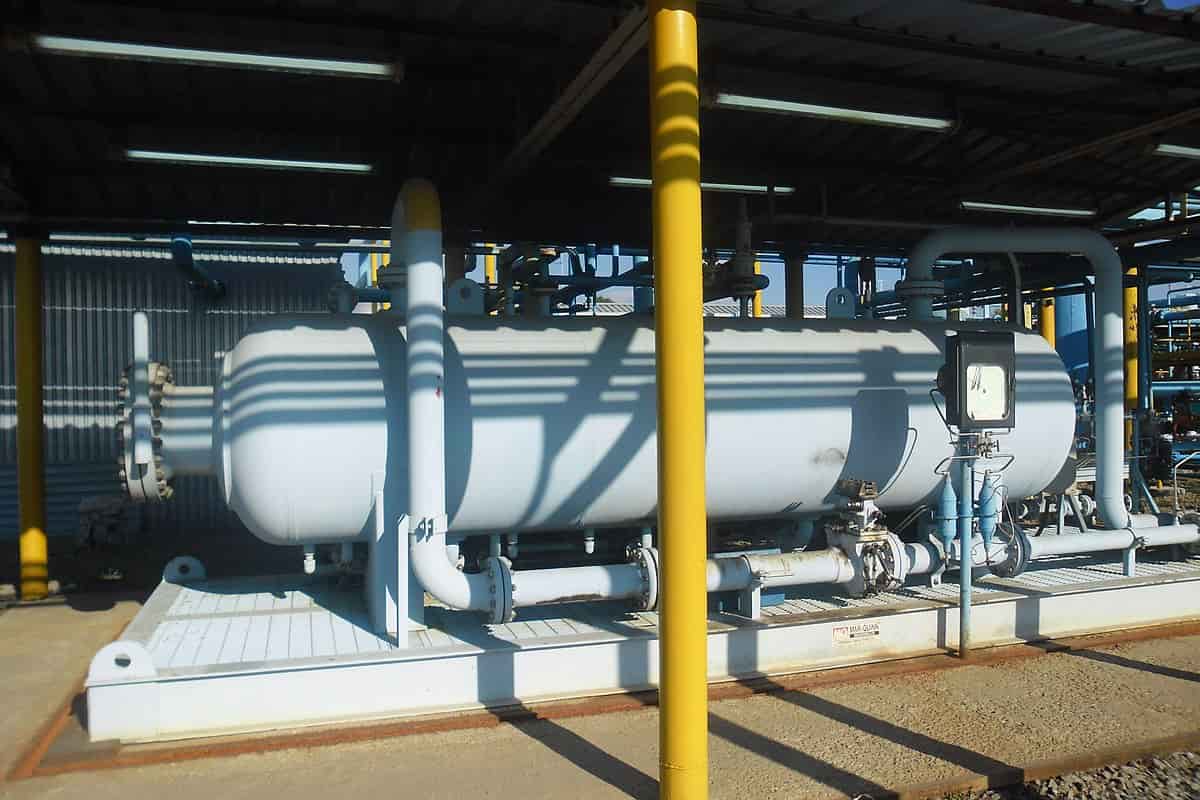

Mud Gas Separator
This separator processing system is also used in oil drilling by extracting oil and returning the mud to the mud pits.
Small amounts of entrained gas can be processed by a vacuum degasser located in the mud pit.
Mud/gas separators control gas shut-off in the event of a shock, when drilling with large volumes of drilling gas in mud return, or during fracturing gas circulation.
The liquid pipeline is cylindrical, which prolongs the service life of the equipment.
The main body of the equipment is made of anti-hydrogen sulfide material with surface treatment.
This completely prevents H2S damage.
Mud Gas Separator Features
The GN Sludge Gas Separator can be installed in a large transport skip for ease of movement, and when installing the Sludge Gas Separator, the throttling manifold can be spaced apart.
GN Solids Control Flare is used to connect to a mud gas separator exhaust pipe to burn harmful gases such as H2S from drilling mud.
| Title | Description |
| Uesed in | Oil Drilling |
| Made of | Anti-hydrogen Sulfide Material with Surface Treatment |
| Designs | Traditional and Modern |
| Referred to | As Poor Degassers. |
The upper part of the ignition system is made of stainless steel and is designed to resist rain from the oil field.
The main electrical components are all well-known brands such as Siemens and Schneider.
Power can come directly from traditional industrial power sources, or the user can charge the battery and use the device for remote area applications.
Buy Mud Gas Separator
GN flame units are remotely controlled and an optional PLC can be used to reduce manual notification for continuous and automatic operation.
We will talk about how sludge gas separators work and how they are designed to buy.
Such gas separators are sometimes referred to as poor degassers.
Because we mainly use it to remove entrained gas when drilling full wells.
There is horizontal or vertical.
But vertical separators are typically used for high liquid transfer, while horizontal separators offer longer retention times and superior gas separation capabilities.
Internal design and configuration determine the individual efficiency of the device.
The drilling fluid passes through the solid tubing downstream of the choke, is impacted or abruptly passes through the baffle, and crosses the storage tank into the mud gas separator, decomposing the invading gas or bubbles, and allowing the gas to escape through the exhaust pipe.
Mud Gas Separator Price + Buy and Sell
The mud gas separator must be able to handle the bulk of the mud solids and may experience hydrate bonding due to gas expansion through the throttle.
Designs based on traditional process practices, including liquid discharge valves and control valves for regulating gas pressure, have a high risk of failure due to the connection, and therefore require the provision of self-adjusting safety valves, which are not suitable for assembly.
Therefore, the mud gas separator design should only be based on a liquid seal system that is compatible with the exhaust.
Our Set Pricing for Mud Gas Separators, As a rule, the cost of a Mud Gas Separator will run you anything from $60 to $100,000 per unit.
So try to contact us if you need to get this product.
The Answer to Two Questions About Mud Gas Separator
1: How do mud gas separators work?
The well's mud and gas are separated by the mud/gas separator, with the gas vented and the mud returned to the mud pits.
2: What is the process of a gas separator?
Gas, oil, and water that enter the separator are diverted away from each other by an inlet diverter.
