We are able to provide you with information regarding the price that is associated with the manufacturing of pellets that are created from iron ore. Very fine-grained iron ore is agglomerated during the pelletizing process, which produces balls with a specific diameter range (often 8 mm to 20 mm), commonly known as pellets. These pellets can be used in direct reduction and blast furnace procedures. In contrast to sintering, pelletizing forms a green, unbaked pellet or ball that is later heated to harden it. From beneficiated or run-of-mine iron ore fines, iron ore pellets can be produced. Beneficiation is typically used to increase the iron ore content of lean iron ores. This process produces iron ore filter cake, which must be pelletized in order to be used in the production of iron. Additionally, produced fines from the processing of high-grade iron ores that don't require beneficiation can be pelletized and put to use as opposed to being thrown away.
Pellet plants can be found in steel mills, next to ports, or at mines. They produce no solid or liquid residues and are practically pollution-free thanks to their cutting-edge environmental technology. When a Swedish inventor named A.G. Andersson created a technology for pelletizing, the history of pellets officially began. But after World War II, pellets started being used commercially in the USA. In order to develop the enormous taconite (a low grade iron ore) reserves in the vicinity of the Great Lakes, numerous studies were carried out in the USA. Taconite ore was upgraded and ground to remove gangues as part of the enrichment process. The resulting high quality ore is in the form of tiny, unsuitable-for-sintering particles, measuring no larger than 0.1 mm. The procedure of pelletizing was created in response to this problem. A technique for processing taconite that contains low-grade iron ore was developed in 1943 by Dr. Davis, a professor at the University of Minnesota's Mines Experiment Station, and his colleagues. Their discovery demonstrated that it was possible to ball or pelletize fine magnetite concentrate in a balling drum and that a hard, indurated pellet well suited for use in the blast furnace could be produced if the balls were fired at a high enough temperature (typically below the point of incipient fusion). Due to the outstanding results obtained by steel plants in extended operations using pellets as the primary iron-bearing material in the blast furnace burden, intense interest in the pelletizing process had developed despite the undeniable benefits of sinter on blast furnace (BF) performance. Pelletizing plants are anticipated to be crucial in a time when the world's supply of high grade lump ore is depleting. In the upcoming years, blast furnaces and direct reduction furnaces will use these upgraded pellets more frequently, thanks to the plants' promotion of the concentration of low grade iron ores.

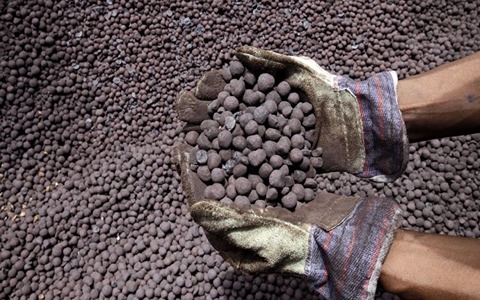

Iron ore pellet
Iron ore pellets could be either acidic or basic. While basic pellets are often referred to as BF grade or fluxed pellets, acid pellets are also known as DRI (direct reduced iron) grade pellets. Pellets of the DRI grade - These pellets typically have a basicity of less than 0.1. The polycrystalline hematite bridges in the fired pellets are partially responsible for their strength. Usually, these pellets have a lot of open pores. Through these pores, the reduction gas enters the pellet core swiftly and concurrently damages the structure throughout. As a result, the entire pellet volume experiences an early structural change that starts at low temperatures. Pellets of the BF grade have a basicity of at least 0.1 but might vary. Normal basic pellets have low CaO percentages and a basicity between 0.1 and 0.6. A glassy slag phase made up of SiO2, CaO, and Fe2O3 in different percentages is created after the burning of these pellets. Increased flux addition causes some slag to form, and as a result, there is some slag bonding with iron ore crystals.
Pellets with a high basicity level have a basicity level above 0.6. These pellets have a greater concentration of CaO. These pellets contain calcium ferrites in addition to a glassy phase made primarily of SiO2, CaO, and Fe2O3. The presence of CaO during fire of these pellets significantly encourages the formation of hematite crystals. After pellet firing, these pellets typically have a high mechanical strength. The properties of fluxed pellets include superior strength, enhanced reducibility, swelling, and softening melting. These characteristics allow these pellets to function better in the blast furnace. The kind of the ore or concentrate, related gangue, and type and quantity of additional fluxes all have an impact on the pellets' quality. These elements also influence how the coexisting phases are distributed during pellet induration and how their physicochemical properties vary. As a result, the shape and strength of the bonds formed by the ore particles as well as the durability of these bonding phases during the reduction of iron oxides greatly influence the attributes of the pellets.
Fluxing agents have an impact on pellet quality in terms of CaO/SiO2 ratio and MgO content because the creation of phases and microstructure during induration depends on the type and amount of fluxes applied. Essentially, hematite (originally present) iron ore particles, crystalline silica (quartz, cristobalite, and tridymite), and forsterite make up mineralogically pellets. The amount of gangue phases in the final product makes up the majority of the differences in pellet mineralogy. These will vary according on the kind and quantity of any feed additives, such as bentonite, olivine, dolomite, and limestone, as well as the pellet feed material. In order to reduce degradation due to breakage and abrasion during handling, shipping, and in the blast furnace, iron ore pellets' strength is crucial. It is thought that the strong bonding in pellets results from grain expansion caused by the simultaneous oxidation of magnetite to hematite or recrystallization of hematite. Despite the possibility of more rapid strengthening at slightly lower firing temperatures due to slag bonding, pellet strength often decreases, particularly in terms of thermal shock resistance. Compression and tumble tests are the most popular methods for determining pellet strength.
The mineralogical makeup and physical characteristics of the concentrate, the additives employed, the balling technique, the pellet size, the firing method and temperature, and the testing procedure all affect the compressive strengths of individual pellets. For pellets with diameters between 9 mm and 18 mm, the compressive strengths are typically in the range of 200 to 350 kg. In the tumbler test, 11.4 kg of pellets larger than 6 mm are tumbled in an ASTM E279-65T drum tumbler for 200 revolutions at 25 rpm before being screened. After tumbler testing, a good commercial pellet should have no more than 5% of minus 0.6 mm (minus 28 mesh) particles and 94% or more of plus 6 mm size. Additionally preferred are shattered pellets with a minimum size of between 6 and 0.6 mm. Reducibility, porosity, and bulk density are further crucial characteristics of the pellets that will be used as feed for blast furnaces. These can vary with various concentrates, but only to a limited extent.
Iron ore pellet manufacturing
The four process steps in an iron ore pellet manufacturing plant are typically (i) raw material receiving, (ii) pretreatment, (iii) balling, and (iv) induration and cooling. Below is a description of these steps in the procedure. raw materials received A pelletizing plant's location has an impact on how raw materials like iron ore, additives, and binders are delivered. Near iron ore mines are many pelletizing facilities. This is so that the iron ores that are beneficiated at these mines can be pelletized using these units, which were erected. Iron ore is delivered to these units by rail and/or slurry pipelines. Away from the iron ore mines, there are numerous additional pelletizing facilities. Iron ore mines are not necessary for these plants. Iron ore is mostly delivered to these factories through rail. Some plants might receive slurry via a long-distance pipeline. When receiving iron ore for pelletizing facilities at ports that depend on imported iron ore, the ore is transported on a special ship, discharged at a quay, and then piled up in a yard. For maximum economy, iron ore is typically delivered in large quantities to such units.
Process before treatment The iron ore is ground into fines with the sizes necessary for the subsequent balling process during the pretreatment step. Concentrating, dewatering, grinding, drying, and prewetting are all parts of the pretreatment process. Low grade iron ores are typically processed into fines to improve the ore's quality, remove gangues that contain sulfur and phosphorus, and regulate grain size. Magnetic separators are used for upgrading and gangue removal in the case of magnetite ores. On the other hand, these processes are carried out with hematite ores using wet-type, high intensity magnetic separators, flotation, or gravity beneficiation. The grinding techniques can be loosely divided into the following three categories. either dry or wet grinding Grinding in a closed circuit versus an open circuit Single-stage grinding or multi-stage grinding
Depending on the types and properties of the iron ores, the mixing ratio, and taking into account economic considerations, these processes are utilized in combination. Dry grinding systems require pre-wetting equipment, whilst wet grinding systems require dewatering units with a thickener and filter. Dry grinding is frequently related to pre-wetting. Pre-wetting entails uniformly incorporating a sufficient amount of water into the dry-ground material to create pre-wetted material fit for balling. This procedure modifies the properties of the raw material that have a big impact on pellet quality. In some cases, this technique also modifies the chemical makeup of the product pellets to create high-quality pellets. The wet strength of green balls is typically increased using binders, such as bentonite, clay, hydrated lime, or an organic binders, to more manageable levels. Bentonite usage, which adds to the end product's silica concentration, ranges from 6.3 to 10 kg per ton of feed, making it a considerable cost factor. The ore is adjusted by adding lime and/or dolomite to create pellets with the desired chemical make-up. There have been significant attempts made to decrease the use of bentonite and discover more affordable alternatives. The additives, as well as the moisture content and particle size distribution of the concentrates, have an impact on the ballability and strength of green balls. The ideal moisture content for excellent balling is often between 9% and 12%. Balling qualities seem to be largely influenced by a concentrate's physical traits rather than by its chemical makeup. Because of their plate-like structure, specular hematites, for instance, are more challenging to ball than magnetite concentrates. In any event, grinding to roughly 80% to 90% minus 43 micrometer often results in adequate pellet formation. For optimum balling qualities, any material being considered for pelletizing should typically comprise at least 70% minus 43 micrometer (minus 325 mesh) and have a specific surface area (Blaine) greater than 1200 sq cm/gram.
Iron ore pellet price
We make a fair comparison of the iron ore pellet price to the global steel markets. The following is a list of advantages that manufacturers of iron ore pellets stand firmly behind. This should provide you some insight into the benefits of either manufacturing them or keeping a supply of them on hand. Pellets are the ideal feed for manufacturing iron because they optimize fuel use and provide a host of other benefits, according to expert iron pellets makers in India, who will tell you that pellets are the best feed for creating iron: Because of the high iron content, increasing the proportion of pellets used in the production of steel results in a greater overall yield. The utilization of pellets results in an increase of 15–20 percent in levels of output. The same results can be achieved because to their spherical shape, consistent quality, and porous structure.
Because they contain so little gangue, using pellets results in high metallization rates, which in turn lowers the amount of fuel required and the amount of time required to reduce iron oxide. Because pellets contain relatively little silica, using them results in significant reductions in the amount of energy required. The use of pellets results in a reduction in the emission of toxic gases and particulate matter, which is beneficial to the health of the environment. It also reduces the costs associated with trash handling.
