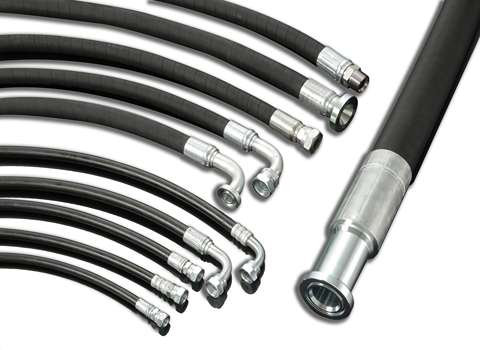

Types of Hydraulic Hoses
Before diving into the construction and specifications of hydraulic hoses, it's important to understand the different types available on the market.
Generally, there are two main types of hydraulic hoses
SAE (Society of Automotive Engineers) hoses
These hoses adhere to the specifications set by the SAE and are primarily used in the automotive industry.
SAE hoses are categorized into different pressure classes, including SAE 100R1, SAE 100R2, SAE 100R5, and more.
DIN (Deutsche Institut für Normung) hoses
These hoses adhere to the specifications set by the European Committee for Standardization (CEN) and are commonly used in industrial applications.
DIN hoses are categorized into various standards, such as DIN EN 853, DIN EN 856, DIN EN 857, and more.
Specifications to Consider
When choosing hydraulic hoses, it's important to pay attention to certain specifications to ensure compatibility with your specific application.
Here are some key specifications to consider :
Size
Hydraulic hoses are available in different sizes, usually measured by the inside diameter (ID) or the outside diameter (OD) of the hose.
The size you choose should match the fittings and equipment you're using.
Pressure Rating
The pressure rating of hydraulic hoses indicates the maximum working pressure it can handle.
It's crucial to select hoses that can withstand the pressure of your hydraulic system to prevent accidents and equipment failure.
The pressure rating is usually mentioned in PSI (pounds per square inch) or bar (unit of pressure).
Temperature Range
Hydraulic hoses must be able to operate within a specified temperature range to prevent degradation and performance issues.
Consider your application's temperature requirements and choose hoses that can handle both high and low temperature extremes.
Bend Radius
The bend radius specifies the minimum radius at which the hose can be bent without causing damage.
A smaller bend radius indicates a more flexible hose, which is essential for applications with tight space constraints.
Special Conditions to Consider
In certain environments or applications, additional considerations need to be taken into account when choosing hydraulic hoses. Here are some special conditions and factors to consider:
Chemical Compatibility
If your hydraulic system involves exposure to specific chemicals or fluids, it's important to choose hoses that are chemically compatible with those substances.
Ensure the inner tube material can withstand the chemicals or opt for specialized hoses designed for specific chemical resistance.
Abrasion Resistance
In applications where the hoses may encounter abrasion or mechanical wear, selecting hoses with robust outer covers is essential to prevent premature damage.
UV Resistance
If your hydraulic hoses are exposed to direct sunlight or ultraviolet (UV) rays, consider hoses with UV-resistant covers to prevent degradation caused by prolonged exposure to sunlight.
Electrical Conductivity
In certain environments, such as oil refineries or mining operations, static electricity buildup can pose a significant risk.
Select hoses with conductive layers or anti-static properties to dissipate electric charges safely.
Conclusion
Hydraulic hoses are essential components in hydraulic systems, and choosing the right hoses is critical for operational efficiency and equipment safety.
By understanding the different types, construction, and specifications of hydraulic hoses, you can make informed decisions when purchasing these vital components. Additionally, considering special conditions and factors, such as chemical compatibility and abrasion resistance, ensures that your hydraulic hoses can withstand the unique requirements of your applications.
