This article explores the fascinating world of geared traction elevators, from their history and engineering principles to their modern applications and future innovations.
Join us on an enlightening journey as we delve into the inner workings of these remarkable machines that have revolutionized the way we navigate the built environment.
Geared Traction Elevator Technolog
Geared traction elevators operate on a simple yet ingenious principle. A motor located at the top of the elevator shaft drives a gearbox that turns a sheave (pulley).
Steel cables attached to the elevator car are wound around the sheave, allowing the car to move up and down the shaft.
The gears in the gearbox provide the necessary torque to lift the car and its passengers with precision and control.
One of the key advantages of geared traction elevators is their ability to operate at higher speeds and serve buildings with taller heights compared to hydraulic elevators.
The gear ratio in the gearbox allows for efficient power transmission, making geared traction elevators ideal for high-rise buildings and skyscrapers.
Components of a Geared Traction Elevator System
A typical geared traction elevator system consists of several key components, each playing a crucial role in ensuring smooth and reliable operation.
These components include the elevator car, counterweight, guide rails, drive machine, controller, and safety systems.
The elevator car is the compartment that carries passengers and goods between floors.
It is equipped with doors that open and close automatically, providing safe entry and exit for passengers.
The counterweight helps balance the load of the elevator car, reducing the amount of power required to move it up and down the shaft.
Guide rails guide the elevator car along its vertical path, ensuring stability and alignment during travel.

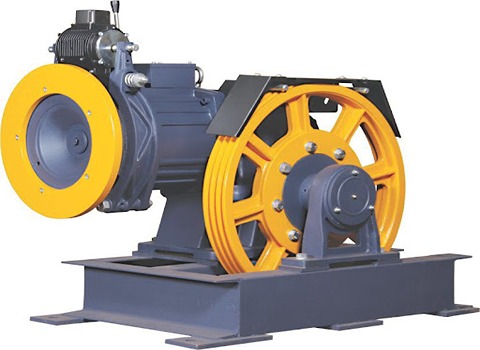

The drive machine is the heart of the elevator system, providing the mechanical power needed to move the car.
It consists of a motor, gearbox, and sheave assembly that work together to lift and lower the car efficiently.
The controller acts as the brain of the elevator, processing commands from passengers and managing the operation of the elevator system.
Safety systems such as overspeed governors, buffer systems, and interlocks are designed to protect passengers and prevent accidents.
Overspeed governors monitor the speed of the elevator car and engage safety brakes in case of a malfunction.
Buffer systems cushion the impact of the elevator car in the event of a sudden stop, while interlocks prevent the doors from opening unless the car is safely parked at a landing.
Applications of Geared Traction Elevators
Geared traction elevators are widely used in a variety of buildings, from residential and commercial properties to industrial facilities and public infrastructure.
Their versatility and efficiency make them suitable for a wide range of applications, catering to the unique needs of different settings.
In residential buildings, geared traction elevators provide residents with convenient access to upper floors, especially in high-rise condominiums and apartment complexes.
These elevators are designed for smooth and quiet operation, enhancing the overall living experience for occupants.
