The High, medium, and low voltage wire and cable each have a rating system that can determine whether it is suitable for a certain use or not. Knowing the important factors of this rating and how it can be done will help you to have a better understanding of the whole thing
high voltage cables
High voltage cable is a type of electrical cabling that is specifically intended for the transfer of high voltage electricity. Because of the quantity of energy involved, working with high voltage has several unique and additional safety issues.
High voltage electricity can be found in electrical transmission lines that transmit power to private residences and commercial establishments.
It can also be found in some kinds of systems that have a high voltage draw, such as certain kinds of industrial machinery.
It is necessary to use specialized cables in order to transport the power in a manner that is both secure and effective while posing a minimal threat not only to the system but also to any spectators.
Conductors are the first component in the assembly of high voltage cables. These conductors can be fabricated out of a variety of metals in addition to copper.
To prevent electrical discharge, each conductor needs to be individually encased in an insulator, and the system may also include pressurized oil in some configurations.
It is essential to do this in order to preserve the structural integrity of the cable itself, as unforeseen discharges have the potential to cause electrical difficulties as well as damage the wiring. The insulated conductors are shielded from the elements by a substantial layer of jacket material that is wrapped around them in a jacket.
high voltage cable testing equipment
In addition to protecting employees and equipment, jacketing safeguards the cable itself. It is essential to avoid coming into direct touch with high voltage cable because not only is the electricity potentially lethal, but coming into contact with the cable could also cause it to get damaged and cause a short in the system. The presence of a jacketing that contains thick insulation protects the cable while it is in use.
This helps to reduce the risk of severe electric shock, fires, and other problems that may occur in the event that the conductors are left uncovered.
Insulation can be made out of a wide variety of materials, such as paper goods, plastics, rubbers, and even some rubberized plastics.
Before it can be distributed or installed, the high voltage cable needs to be constructed with extreme caution and put through rigorous testing.
During installation, additional jacketing could be added for greater protection if there are specific concerns that need to be addressed.
Other components of a high voltage system need to be up to standards as well; if they are not, there is a risk that these components will malfunction while the power is being transmitted.
Because of the increased dangers connected with coming into direct touch with high voltage cables, they are frequently designated with warning warnings. In the event that there is an issue with a system that operates at high voltage, the power must be turned off before personnel can approach the system to fix the issue.
In the sake of user safety, such devices frequently shut down automatically in reaction to electrical issues.
They also have locking power switching mechanisms that allow workers to turn the system off while they are performing maintenance and repairs.
This way, the workers do not have to worry about another worker activating the system while they are working with it because the locking mechanisms prevent accidental activation of the system.
The highest voltage that may be continually applied to a completed cable construction in a manner that is compliant with the appropriate cable standard or specification is what is referred to as the voltage rating of a cable. It is the maximum voltage that a cable can be operated at while still maintaining its stability.
An example of a voltage rating would be what is commonly referred to as 0.6/1kV but would technically be written as 0.6/1 (1.2)kV.
Another example would be to take a voltage rating from a cable with a greater voltage, such as the medium voltage 19/33 (36)kV cable.
The maximum voltage that the cable can withstand while remaining stable and operating safely is indicated by the part that ends with brackets.
How cable rating can be important
Here we will discuss the answer to the questions of how the rating can always be so important.
The cable or wire rating is an important characteristic that is relevant to all cable installations. The cable rating is dependent on a wide variety of elements that are related to the design of the cable itself as well as its installation.
In the end, the issue can be thought of in terms of the heat that is generated in the conductor and how it must be removed from the system in order to prevent excessive aging from occurring; in other words, thermal management becomes a concern.
In point of fact, when the operating voltages of the system rise, the thickness of the insulation will need to rise in order to meet the criterion of limiting the greatest electric field that can exist within the insulation. This will make the problem of thermal runaway even worse.
Clearly, if an insulating system was available that had superior breakdown properties, such that operation under increased electric stress was acceptable, then this problem would be alleviated. However, this would only be the case if other relevant material characteristics were not compromised.
The field- and temperature-dependent insulation conductivity is a significant characteristic that plays a role in determining the potential for thermal runaway. During the electrical type test, when the voltage is 1.85 times the nominal operating voltage, the risk is at its peak.
Even at voltages more than 600 kV, new insulating materials that have a greatly lower electrical conductivity are being developed as a means of mitigating this risk. These compounds should minimize thermal instability.
Increasing the thermal conductivity of the insulation compound is a further method that can be used to prevent thermal runaway.
In conclusion, a number of approaches to address this issue have been proposed for cables and other high-voltage (HV) equipment of electrical power systems. These solutions involve improving certain aspects of the insulation system with respect to suitable material parameters such as breakdown strength, transmittance and dielectric loss, electrical conductivity and thermal conductivity.
These solutions have been developed for use in electrical power systems. However, from the point of view of a network operator, the major operational criteria are of a far greater significance. How much of a current does the cable have the capacity to carry, what is its overload rating capability, and how does this affect the system's overall operational efficiency and flexibility?
Despite the fact that high-voltage direct current (HVDC) cables and high-voltage alternating current (HVAC) cables are somewhat distinct from one another, the investigation of the latter case that was carried out by Pilgrim et is, nevertheless, instructive and contains principles that are applicable to both types of cables.
In this study, the impact of a number of relevant insulation properties on two relevant operational parameters, namely the overall rating of the cable and the power losses incurred per unit of power transmitted, were considered.
These operational parameters were the overall rating of the cable and the power losses incurred per unit of power transmitted.
In terms of the insulation's breakdown strength, it was discovered that an increase was good since, in theory, it can allow the insulation thickness to be reduced. This, in turn, reduces the insulation's thermal resistance, which ultimately results in an increase in the cable's rating.
However, this was also shown to lead to an increase in cable capacitance in the case of an HVAC cable, which in turn led to increased dielectric losses and a reduction in the maximum length of the cable circuit over which power could be transferred in a useful manner.
This was discovered through the aforementioned research. It is obvious that variations in the real component of the relative permittivity of the insulation have an equivalent direct effect, whereas decreases in the dielectric loss were assumed to be unimportant because of the low losses that are inherent in modern cable insulation materials.
The final two characteristics that were taken into consideration were directly related to thermal variables. These were thermal conductivity and the maximum allowed operating temperature of the insulation, both of which will take place near to the conductor.
The temperature limits that are placed on the cable can, in theory, be reduced through improvements in both of these factors, which will result in an increase in the cable's rating.
The general methodology that was used in this analysis consisted of calculating a continuous rating using a modified form of IEC 60287 for a three-phase 400 kV circuit that was based on three directly buried single core cables, each of which contained a 2500 mm2 copper conductor.
The results of this calculation were used to determine the continuous rating of the circuit.

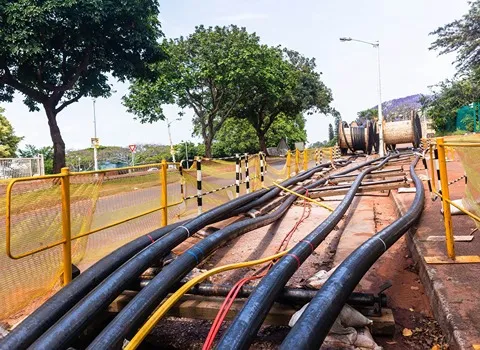

high voltage cable installation standards
The investigation assessed the effects of modifying each of the five characteristics describing the insulation material (breakdown strength; the actual part of the relative permittivity; the dielectric loss; maximum operating temperature; thermal conductivity), and it did so across three different levels.
This resulted in a number of important discoveries being made. A sensitivity analysis discovered that this was still beneficial even if it were preceded by a small reduction in breakdown strength, which could be countered by an increase in the thickness of the dielectric.
First, in the case of HVAC, it was found that the most significant improvement in overall operational performance resulted from an increase in the thermal conductivity of the insulation. This was found to be the case even though it was accompanied by a small reduction in breakdown strength.
On the other hand, it was discovered that increasing the amount of dielectric loss has negative repercussions. It was discovered that increasing the temperature at which the device was working might also result in increased ratings, despite the fact that this led to an increase in the device's overall losses.
The acceptability of this, or the lack thereof, will be contingent upon the wiring and operational scenarios, the economic consequences of achieving better rating versus incurring increased system losses, and the suitability of other factors that may be set by network or regulator policies.
In other words, the acceptability of this will depend on the cable installation and operational scenarios. As a result, it is essential to take into account both the big picture and a variety of different operational elements.
In another place, a complementary method was utilized to investigate the effect of insulation material type and parameters on the steady state and transient responses of an HVAC cable with a cross-sectional area of 2500 mm2 and a voltage of 400 kV that was used as a component of a power system. The cable contained a copper conductor.
In this particular instance, a number of distinct cable deployment scenarios have been simulated; however, for the sake of brevity, we will only be discussing the situation in which cables are immediately buried.
high voltage cable rating
It was demonstrated through the use of a coupled multi-physics, finite element approach that, under steady state conditions, a dielectric capable of sustaining continuous operation at 150°C could lead to a continuous rating that was increased by more than 30% in comparison to an existing cross-linked polyethylene (XLPE) insulated design.
This was done by comparing the two different types of designs. It was discovered that continuing to operate at such a high temperature for an extended period of time led to a large migration of water within the soil as well as a drying of the ground surface, both of which were undesired outcomes.
However, a transient response analysis based on preload conditions that are commensurate with the current practice for XLPE-insulated cables indicated that emergency ratings could be extended from 6 hours, as they are right now, to 24 hours for a cable that was insulated with a dielectric that was able to safely withstand continuous operation at just 120 degrees Celsius (compared to 90 degrees Celsius for XLPE).
As a result, we have reached the conclusion that optimizing the material system that is employed inside an HVAC cable system, whether it be through greater heat dissipation or through increased operational temperature, is capable of offering considerable operational benefits to the network.
The same line of thinking can also be used for HVDC cables. Because of the significant role that material considerations play in determining cable performance and, by extension, network function, it is imperative that these aspects be addressed concurrently in order to realize the full potential of the system as a whole.
