Butterfly valves are a critical component in many industrial processes, providing reliable and efficient flow control.
From water treatment plants to oil refineries, these versatile valves play a crucial role in regulating the flow of liquids and gases.
In this comprehensive guide, we will explore the various types of butterfly valves, their applications, advantages, and key maintenance tips to ensure optimal performance.
What is a Butterfly Valve?

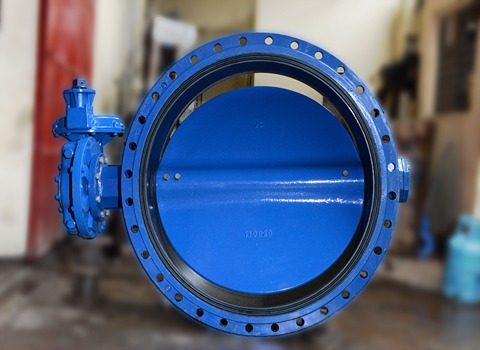

A butterfly valve is a quarter-turn valve that is used to control the flow of a fluid.
The valve's disc, which is mounted on a rotating shaft, is positioned within the pipe and can be rotated to either allow or block the flow of the fluid.
When fully open, the disc is positioned parallel to the flow direction, minimizing pressure drop and allowing for unrestricted flow.
Conversely, when fully closed, the disc is perpendicular to the flow, effectively sealing off the pipe.
Types of Butterfly Valves:
Concentric Butterfly Valve: In this type of valve, the center of the disc is aligned with the center of the pipe, providing a streamlined flow path.
Concentric butterfly valves are commonly used in water and wastewater treatment plants due to their low-pressure drop and tight shut-off capabilities.
Double Offset Butterfly Valve: These valves have the disc mounted slightly off-center, allowing for a more reliable seal and reduced wear and tear.
Double offset butterfly valves are ideal for high-pressure applications, such as in the oil and gas industry.
Triple Offset Butterfly Valve: The triple offset design features an elliptical seat geometry, which creates a metal-to-metal seal that is highly resistant to wear and corrosion.
These valves are suitable for high-temperature and abrasive media applications, making them a popular choice in the chemical and petrochemical industries.
Applications of Butterfly Valves:
Water and Wastewater Treatment: Butterfly valves are commonly used in water treatment plants to regulate the flow of water, chemicals, and sludge.
Their quick operation and low-pressure drop make them ideal for controlling flow rates in these critical processes.
HVAC Systems: In heating, ventilation, and air conditioning systems, butterfly valves are used to control the flow of air and water, helping to maintain optimal temperature and humidity levels in buildings.
Oil and Gas Industry: Butterfly valves play a vital role in the transportation of oil and gas, where they are used to isolate and control the flow of hydrocarbons in pipelines and refineries.
Food and Beverage Industry: In food processing plants, butterfly valves are utilized to control the flow of ingredients, liquids, and gases during the production of food and beverages.
Advantages of Butterfly Valves:
Cost-Effective: Butterfly valves are generally more economical than other types of valves, making them a popular choice for budget-conscious applications.
Quick Operation: With their quarter-turn operation, butterfly valves can be quickly opened or closed, allowing for rapid response to changes in flow rates.
Low Pressure Drop: The streamlined design of butterfly valves results in minimal pressure drop across the valve, reducing energy consumption and optimizing system performance.
Space-Saving Design: Butterfly valves have a compact design, making them ideal for applications where space is limited.
