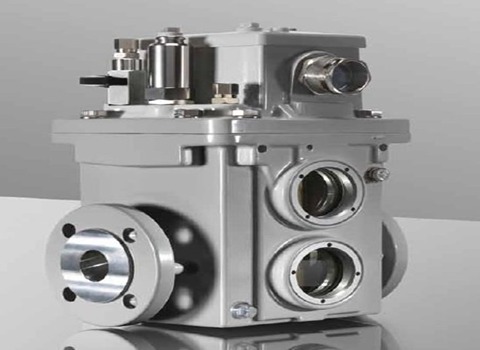

Understanding the Buchholz Relay
The buchholz relay is a specialized device designed to provide early detection and protection against incipient faults within oil-filled transformers.
It serves as an essential component in transformer safety systems, offering a proactive approach to preventing serious incidents such as insulation breakdown, short circuits, and internal arcing.
The primary function of the buchholz relay is to detect abnormal oil flow or gas accumulation within the transformer, which are indicative of developing faults.
How Does the Buchholz Relay Work?
The operational principle of the buchholz relay is based on the physical properties of transformer oil and the behavior of gases generated during fault conditions.
The relay is typically installed in the connecting pipe between the transformer's main tank and conservator tank, allowing it to monitor the oil flow and gas emissions from the transformer.
In normal operating conditions, the buchholz relay remains in a standby mode, with its float mechanism positioned at a neutral level due to the balanced oil flow.
However, in the event of an internal fault such as overheating, insulation degradation, or partial discharges, gas bubbles or hot oil rise to the relay, causing the float to tilt and trip the alarm or initiate a transformer shutdown.
Types of Buchholz Relays
There are primarily two types of buchholz relays commonly used in transformer protection systems:
Gas Actuated Buchholz Relay
This type of relay operates based on the pressure changes caused by the accumulation of gases generated during incipient faults.
It is sensitive to minor gas volumes and provides early detection of developing issues.
Oil Flow Sensing Buchholz Relay
In contrast, this relay responds to variations in oil flow within the transformer.
It is designed to detect abnormal flow patterns that may result from internal faults like winding deformation or insulation breakdown.
Conclusion
In conclusion, the buchholz relay stands as a cornerstone of transformer protection, offering a proactive defense mechanism against internal faults and malfunctions.
Its ability to detect incipient issues, provide early warnings, and trigger protective actions underscores its critical role in safeguarding transformer assets and ensuring the uninterrupted operation of electrical systems.
As the demand for reliable and resilient power infrastructure continues to rise, the significance of buchholz relays in enhancing safety, efficiency, and performance cannot be overstated.
By understanding the principles, functions, and maintenance requirements of this indispensable device, electrical engineers and maintenance professionals can maximize the longevity and reliability of transformers, mitigating risks and optimizing operational productivity in today's dynamic energy landscape.
