Today, in this article, we are going to give you information about 12 Volt Self Priming Pump Types in Agricultural Irrigation.
12v dc water pump
In India, one of the largest economic sectors is agricultural, and irrigation is crucial to agriculture.
Farmers look at several choices when selecting how best to proceed to irrigate big amounts of land.
In irrigation, pump types such as 12 Volt self priming ones are employed to guarantee a steady supply of water.
When it comes to agricultural pumps, the market offers a wide range of choices.
As irrigation needs rely on a variety of circumstances, including water source, accessibility to energy, and pump position, these agricultural pumps are available in a wide range of varieties and with varying specifications.
A centrifugal pump is preferable if access with a high power flow is crucial to you but an open pit submersible pump is suitable if you can keep the pump immersed in water and it does not need to be easily accessible.
Work to meet your needs for water supply.
One of the most often used types of agricultural pumps nowadays is the centrifugal pump, more specifically the single-set centrifugal pump.
We'll explain why now.

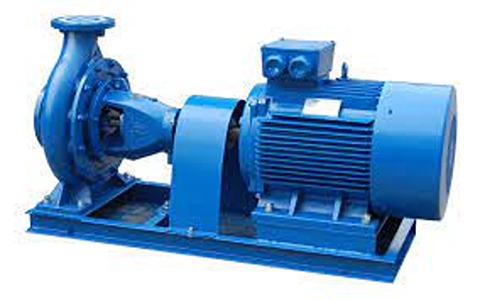

Single-set centrifugal water pumps are what?
Centrifugal pumps transform the rotational kinetic energy of the motor's centrifugal force into hydrodynamic energy, which pushes water under pressure.
Although centrifugal pumps are rather straightforward, they are renowned for producing a steady, powerful flow of water.
Pumps known as monoset or monoblock pumps have the pump and the main motor (motor) placed on a single frame, with the shaft containing the spinning components.
This kind of construction aids in minimizing any transmission loss or leakage while pumping.
Centrifugal pumps having a single set configuration are known as single set centrifugal pumps.
High-quality mechanical seals are included with the single-set centrifugal water pump from Crompton for durability.
These centrifugal pumps may run at a variety of voltages and are available in single-phase and three-phase configurations.
For great efficiency, they also have high-quality electrical stamping.
Why is agriculture using single-set centrifugal water pumps?
Let's discuss what makes single-set centrifugal water pumps excellent for agricultural uses now that you are familiar with what they are and the attributes they have.
Farmers often use fresh water for irrigation, thus powerful pumps that can handle caustic liquids or liquids combined with particulates are not necessary.
Fresh water can be handled by straightforward structures like centrifugal pumps.
You need a reliable water source with stable pressure for irrigation.
Single-set centrifugal pumps provide that.
Voltage fluctuations can be a typical concern in rural locations where farming is practiced, hence Crompton single set centrifugal pumps run over a wide voltage range to prevent pump damage.
These pumps, as was already mentioned, are also highly effective, so they offer superior performance without using a lot of electricity, saving money on electricity bills.
Conclusion
Single-set centrifugal water pumps are excellent for agricultural irrigation applications.
These powerful, little pumps are durable and cost-effective to purchase and install.
In terms of criteria like horsepower, tube size, height range, and discharge range, Crompton offers a broad selection of single set centrifugal pumps.
Make sure an agricultural pump satisfies your needs for water supply before you decide to purchase it by looking at these aspects.
12 Volt Self Priming Pump
Gravity and air pressure ensure that the 12 Volt self priming pump is continuously supplied with liquid if it is situated below the level of the liquid to be pumped.
No air may enter the pump or suction line.
When emptying an underground storage tank, for instance, a pump frequently needs to be positioned above the liquid level.
Before releasing the pump fluid, air in the suction line must be emptied or displaced because it will be present at startup.
Pumps are designed to transfer a certain type of fluid; extracting gas presents a very different set of challenges.
To get around this problem, a number of techniques can be applied.
To drain the suction line, utilize a secondary pump.
To stop liquid from leaking from the suction line when the pump is turned off, a check valve (foot) or drain tank can be utilized.
All of these options call for extra machinery, piping, and procedures, though.
For these applications, the ideal pump must be able to bleed air from the suction side at startup before returning to its typical pumping mode.
Considered to be self-priming is this pump.
What is a self-priming pump limited by?
Fluid is driven into the suction line by the pressure of the surrounding air when the pump expels air from the suction side.
This cycle can go on until the local air pressure is balanced by the liquid charge.
A completely effective pump, for instance, might theoretically prime itself only 10 meters above its supply of water.
For other fluids, the precise range will vary depending on temperature and altitude.
Positive displacement pumps are self-priming, right?
Positive displacement pumps are all self-priming in theory.
It specifically comprises lobe pumps, vane pumps, diaphragm pumps, and rotary gear pumps (internal and exterior).
In order to prevent fluid from moving from the discharge to the suction side, close tolerance components are a typical element of all positive displacement pumps.
A positive displacement pump can discharge some air from its suction line depending on the efficiency of the seals produced by these close tolerance pieces.
But in dry running circumstances, a pump might overheat, leading to seal damage and pump failure.
At the point where fluid first enters the pump and an air/fluid mixture starts to form, there is also a risk of cavitation with reciprocating pumps.
In these circumstances, steam bubbles grow and form on the pump's suction side.
12 volt water transfer pump
The abrupt collapse of the bubbles upon reaching the high pressure, discharge side of the pump causes vibration and harm to the pumping components.
Because of these factors, it's crucial to speak with the manufacturer before installing a positive displacement pump in a situation where it must function as a self-priming pump and essentially run dry for an extended period of time.
Centrifugal pumps are they self-priming?
The pumping action in centrifugal pumps is produced by the transmission of rotational energy from the impeller to the fluid.
The pump's suction and discharge sides are not sealed together.
This means that when the liquid level is below the impeller, centrifugal pumps are ineffective with gases and are unable to remove air from the suction line.
Due to the fact that pumps often rely on the pushed fluid to lubricate and cool the pump bearings, when this occurs, the pump is said to be air-entrained and there is a risk of overheating.
A centrifugal pump can, however, be self-priming with a few adjustments to the fundamental design.
As long as it takes a very long time to prime the pump, the impeller and valve body are effectively enclosed by a tank and can always be submerged in enough liquid to operate the pump as well as provide lubrication and cooling to the pump.
After installation, it's crucial to correctly fill the sump of a self-priming centrifugal pump with fluid.
When a pump is described as "self-priming," it means that it has the capacity to utilize fluid that is stored in its housing to create a vacuum in the suction line.
Centrifugal pumps cannot run dry, not even ones that "self-prime." A centrifugal pump may handle dry running for a brief length of time with the right bearings and seals, but prolonged dry running is not advised.
How does a centrifugal self-priming pump operate?
There are two operating modes for self-priming centrifugal pumps: priming mode and pumping mode.
The pump functions essentially like a liquid ring pump when it is priming.
Air is drawn into the pump from the suction line by the revolving impeller's vacuum created in the impeller's "eye." It also creates a fluid ring that is cylindrical inside the pump housing at the same time.
As a result, air cannot return from the discharge line to the suction line and effectively establishes a gas-tight barrier.
In the fluid inside the impeller vanes, air bubbles are captured and carried to the discharge port.
There, the air is released, and the fluid then gravitationally flows back into a reservoir inside the pump housing.
The fluid gradually rises above the suction line as it is ejected.
Until all of the air in the piping and pump has been replaced by liquid suction, this process continues.
The fluid is now expelled as the typical pumping mode begins.
The priming chamber design (usually having a "gooseneck" in the suction piping) makes sure that enough liquid is stored so that the pump is ready the next time it is used.
This is done when the pump is stopped.
Before beginning a pump that hasn't been used in a while, it's crucial to check the body for leaks or other damage.
A pressurized air pump that self-primes: what is it?
It is possible to prime the pump without a liquid charge by using compressed air.
To create a vacuum, compressed air is pushed through a jet into a conical tube.
Compressed air is sucked in and released from the pump housing and suction line.
The discharge pipe is blocked by a check valve, which also permits fluid to enter the pump body.
Since there is no priming chamber, blockages are less frequent with this approach, and the pump can run dry without risk.
What self-priming pump issues are typical?
Numerous variables can influence a pump's capacity for self-priming.
It is forbidden to pressurize or obstruct the discharge line.
Suction lines need to be airtight for all sorts of pumps.
If air is pumped into the pump, no pressure nor fluid are drawn into the suction line.
In order to speed up priming, it's crucial to limit the amount of suction side piping.
The liquid charge may evaporate before the pump is primed if the priming time is excessively long.
The pump may be harmed as a result of the dry running.
Any factor that reduces the impeller's efficiency will limit the capacity of centrifugal pumps to self-prime.
If the fluid contains solids, debris may build up in the recirculation port, preventing fluid ring creation and preventing circulation of the fluid.
The impeller's capacity to create a low pressure area in the eye will be diminished by debris buildup.
Additionally, as the pump ages and starts to wear down, the space between the impeller and volute gets bigger, enabling the pump to create a low pressure zone.
After maintenance, incorrect assembly might also have an impact on internal clearance.
When pumping water in a chilly climate, it's crucial to drain the pump or supply some sort of warmth if the temperature is likely to dip below freezing.
If water in the pump or piping freezes, damage may result.
Self Priming Pump in Agricultural Irrigation
Principal Benefits of Your Self-Priming Pump Share it without Priming
The capacity to self-prime sets self-priming centrifugal pumps apart from normal centrifugal pumps, which can be utilized in any application.
But in other circumstances, these pumps might not be able to prime themselves.
This can be brought on by a number of things.
This blog post will explain what self-priming pumps are and how to keep yours working properly and efficiently.
How does a self-priming pump operate and what is it used for?
Self-priming pumps have an outer casing that "floods" the volute or inner pump.
The impeller rotates counterclockwise when the centrifugal pump begins, which lowers the pressure in the impeller eye.
As a result of atmospheric pressure forcing water into the suction tube because the pressure is less than atmospheric, all of the air in the suction line is then driven into the pump.
In the housing, the self-priming pump combines recovered water and air.
The air separates from the liquid at this point and is released from the housing.
The pump produces flow like any other centrifugal pump once all the air in the suction line has been displaced.
Whenever a self-priming pump malfunctions...
Your self-priming pump may not be functioning for a number of reasons, including:
There is an air leak in the suction line; as the fluid circulates in the pump and attempts to generate a low pressure area, air is forced out of the discharge.
However, if the suction line leaks for any reason, air is taken into the pump and is never able to discharge enough to produce a low pressure area.
Debris in the impeller's eye: If the impeller has debris in its eye, the hydraulic capacity of the pump and the impeller is weakened, resulting in a low-pressure zone.
Pump has reached air-bound condition: If your pump has reached air-bound condition, it is full of air and no longer capable of producing a vacuum.
This can happen in a number of situations, including:
Absence of an air release line prevents air from being ejected from the pump, which causes it to accumulate on the discharge side instead.
Pressurized Discharge Line: This happens when the valves in the air release line and the discharge line are shut, preventing air from leaving the pump.
Excessive Impeller Clearance: The pump may have trouble producing a low pressure zone when there is an excessive amount of clearance between the impeller and the wear plate.
Excessive clearance wear or incorrect reassembly may be at blame for this.
100 psi water pump 12v
There is a closed recirculation port: Fluid is circulated through the volute box during initial priming.
However, the impeller eye won't be able to produce a low pressure area if the recirculation port closes.
As a result, the pump is unable to suction fluid into the line.
Lift too high for pump speed or impeller diameter: If your pump's suction line is too tiny for it, it won't be able to generate the low pressure required to prime.
Therefore, before selecting your pump, it is crucial to understand the suction head requirements.
Lift too high for pump speed or impeller diameter: If your pump's suction line is too tiny for it, it won't be able to generate the low pressure required to prime.
Therefore, before selecting your pump, it is crucial to understand the suction head requirements.
Too many bends or a long suction line: The tube that transports your fluid from its source to the pump is known as the suction line.
It provides efficiency with less energy needed to move the liquid from one place to another when its suction line is short.
To guarantee that the pump is running well and within its capacity, make sure your suction line is short and has fewer bends.
It's crucial that the suction pipe for self-priming pumps match the pump suction in size.
A self-priming pump will need more priming time if the suction lines are larger since there is greater air volume present.
To avoid letting too much air and gas in, it's crucial that your suction tube extends all the way to the pump rather than just up.
Additionally, it's crucial that the installation piping does not cut off the pump's suction.
